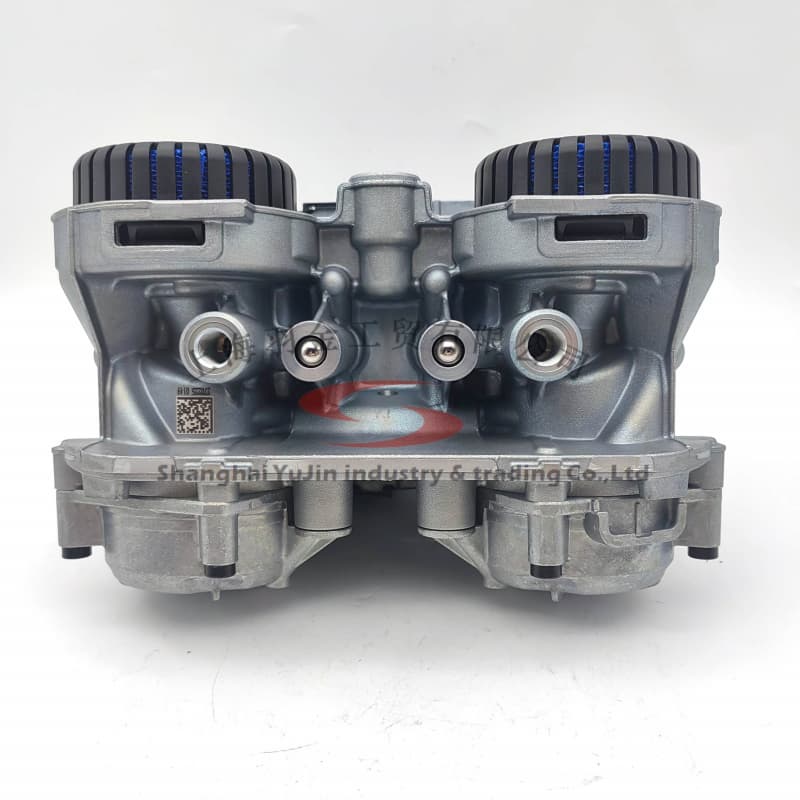

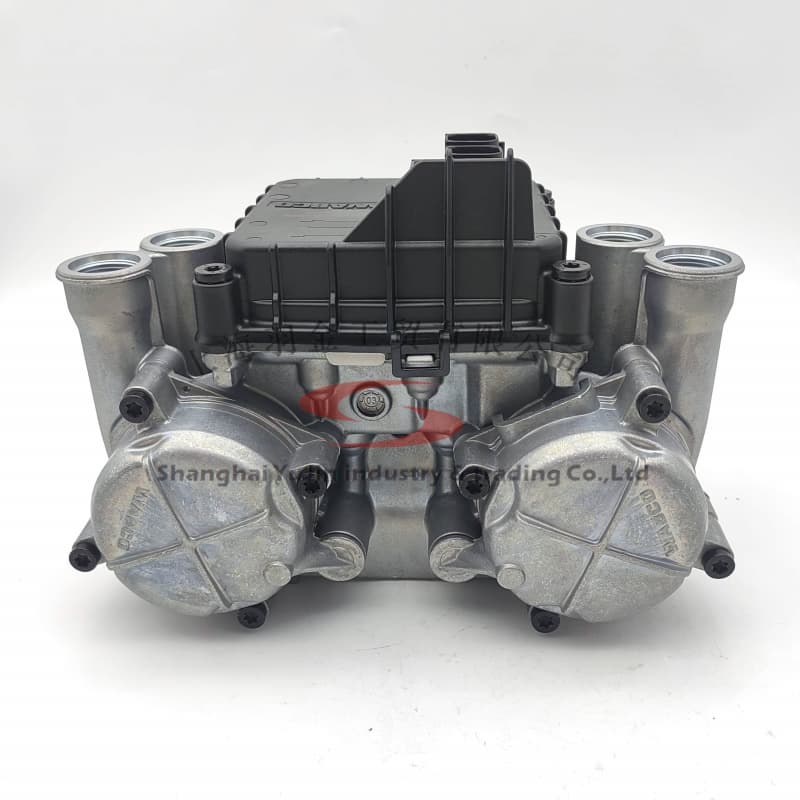

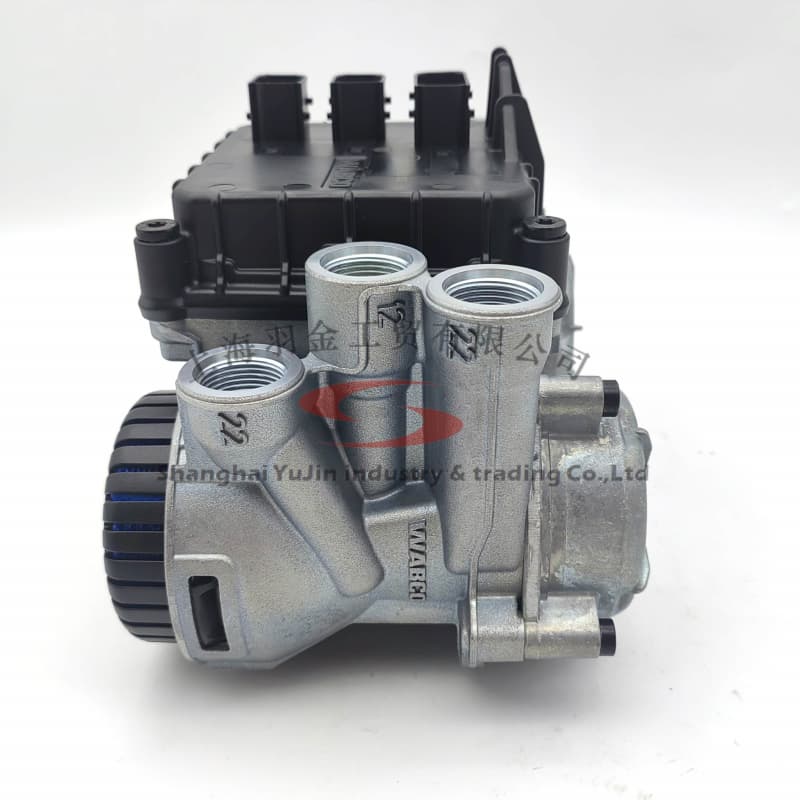

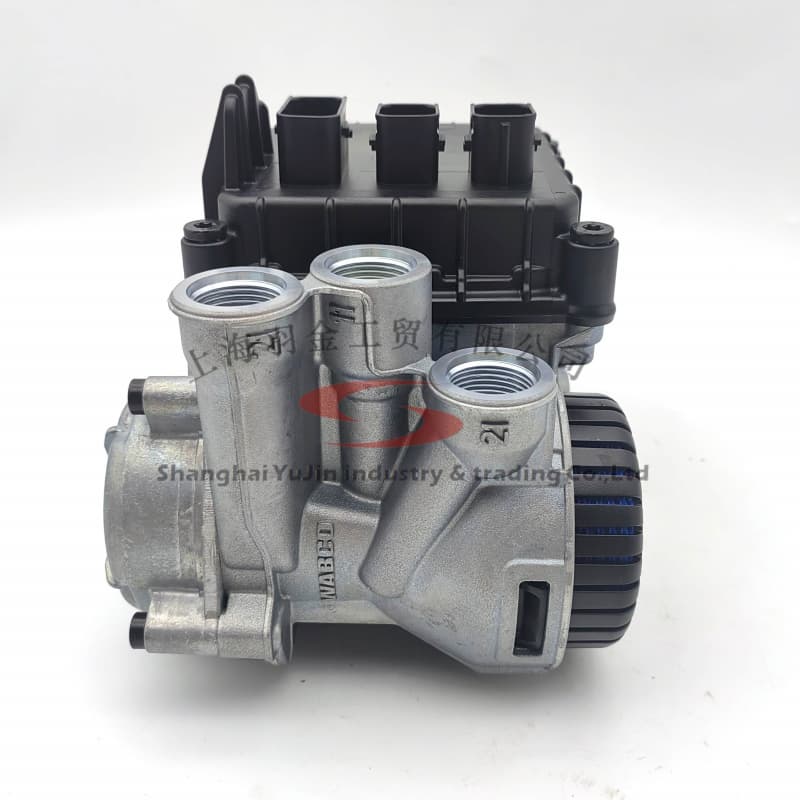

WABCO威伯科EBS桥控模块4801062030
EBS桥控模块 -- 4801062030
产品介绍
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 5.6182 |
| Distance between holes | 3.94 in |
| Max. operating pressure | 188.5 psi |
| Mounting | 2x M12 x 1.5 |
| Port thread 11 | M22 x 1.5 JED - 388-4 |
| Port thread 12 | M22 x 1.5 JED - 388-4 |
| Port thread 21 | M22 x 1.5 JED - 388-4 |
| Port thread 22 | M22 x 1.5 JED - 388-4 |
| Port thread 3 | Integrated Silencer |
| Port thread 4 | M16 x 1.5 JED - 388-4 |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 7 A |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
