WABCO威伯科制动气室9254919010 1519159 A0164204118 194209218 A0194209218 164204118 A0164204118

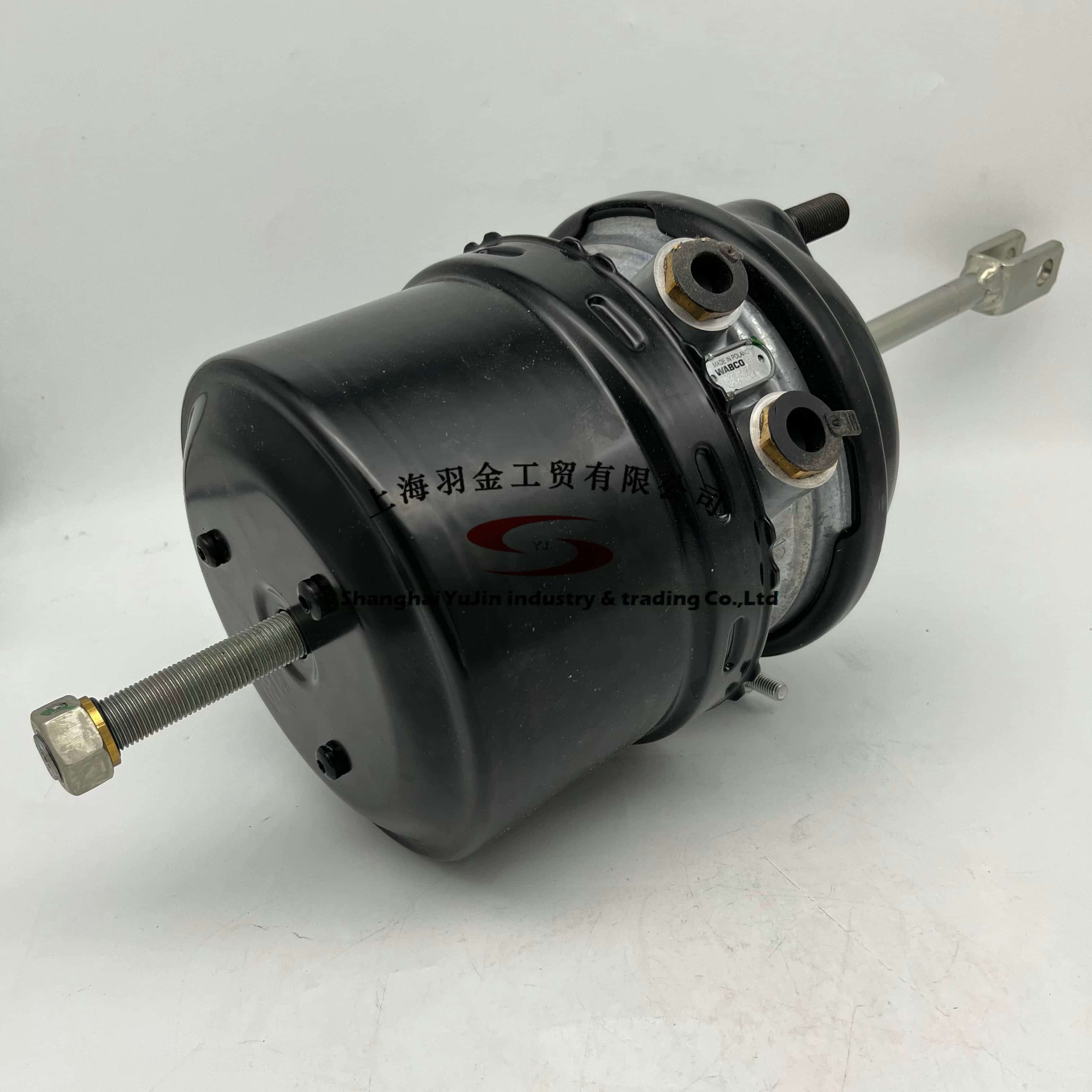

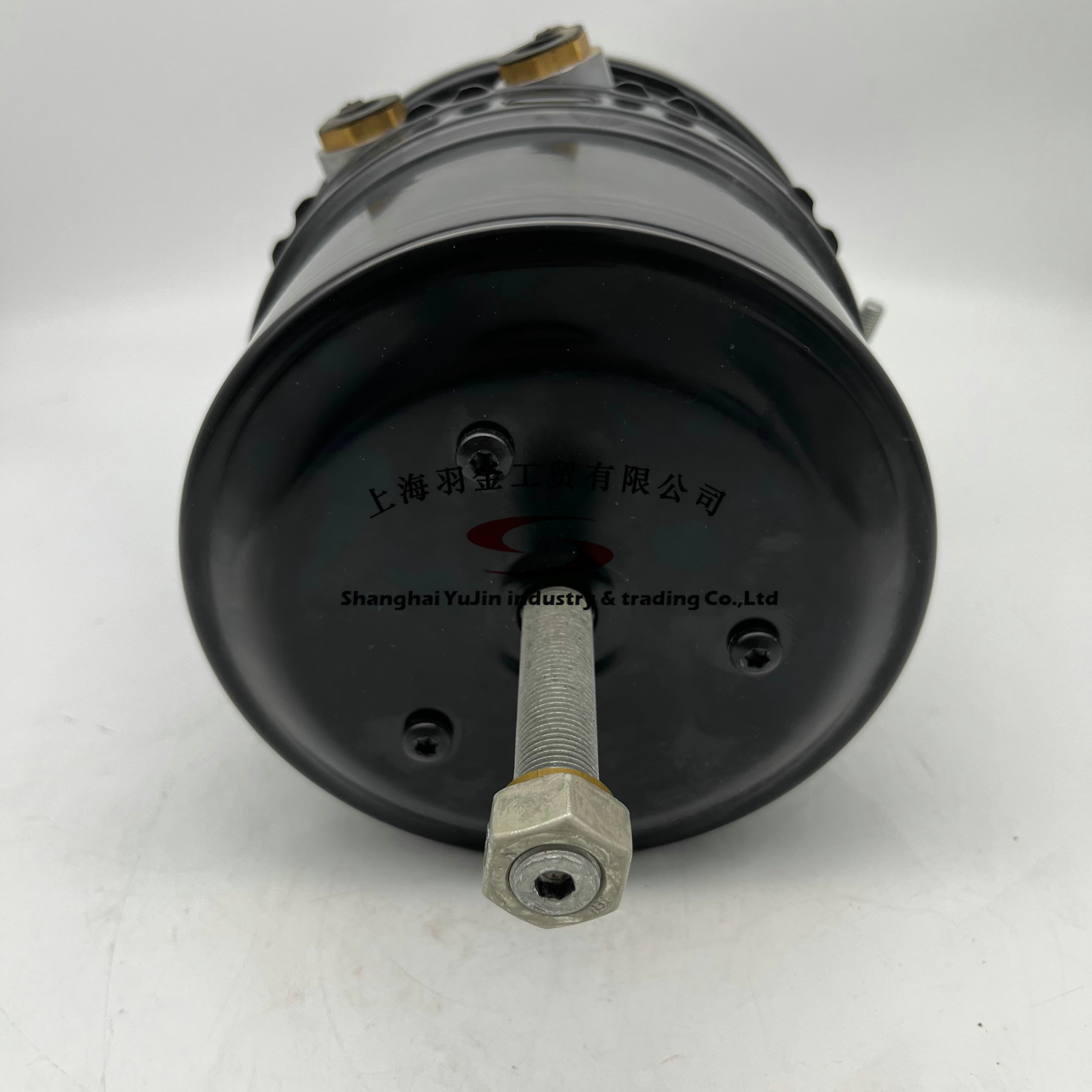

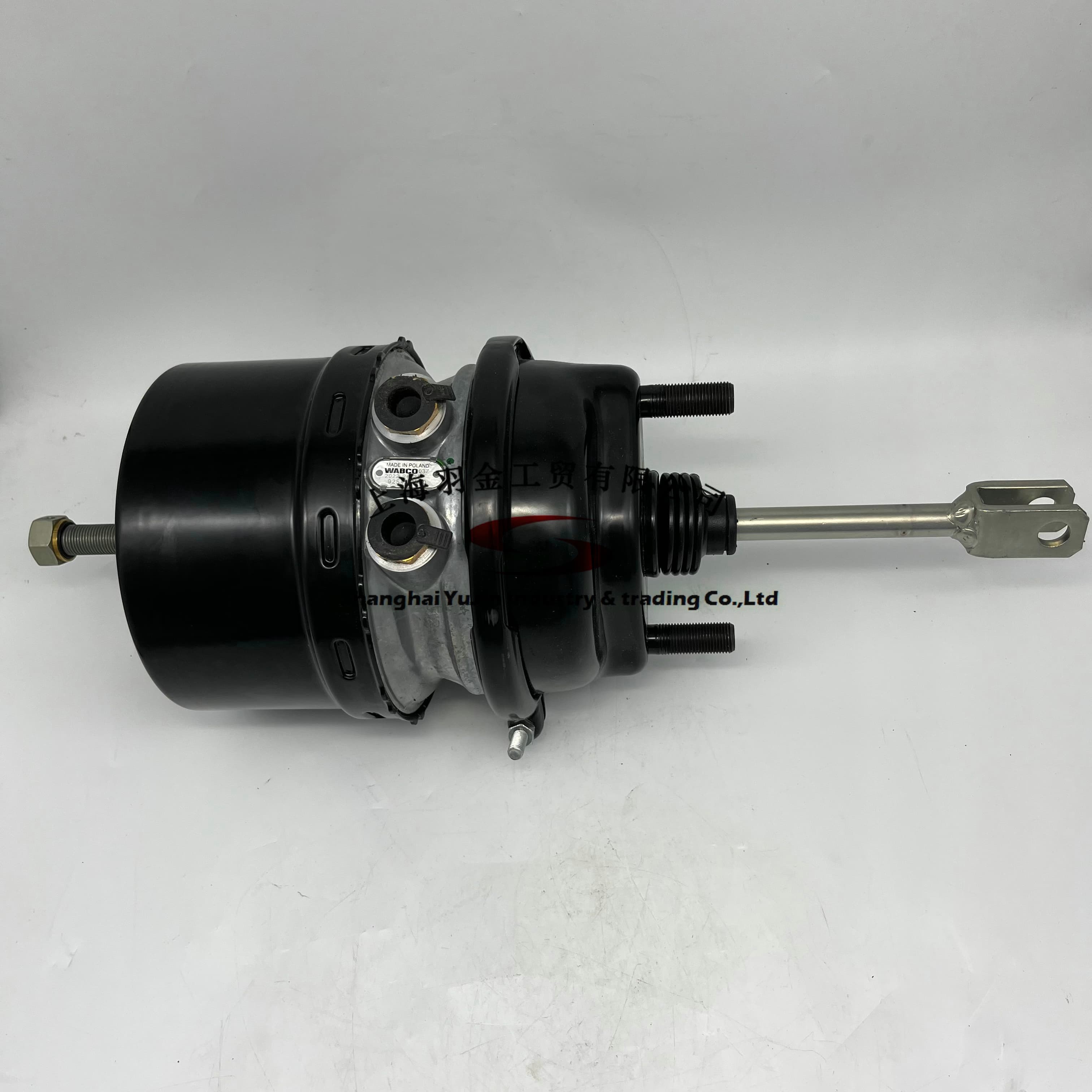

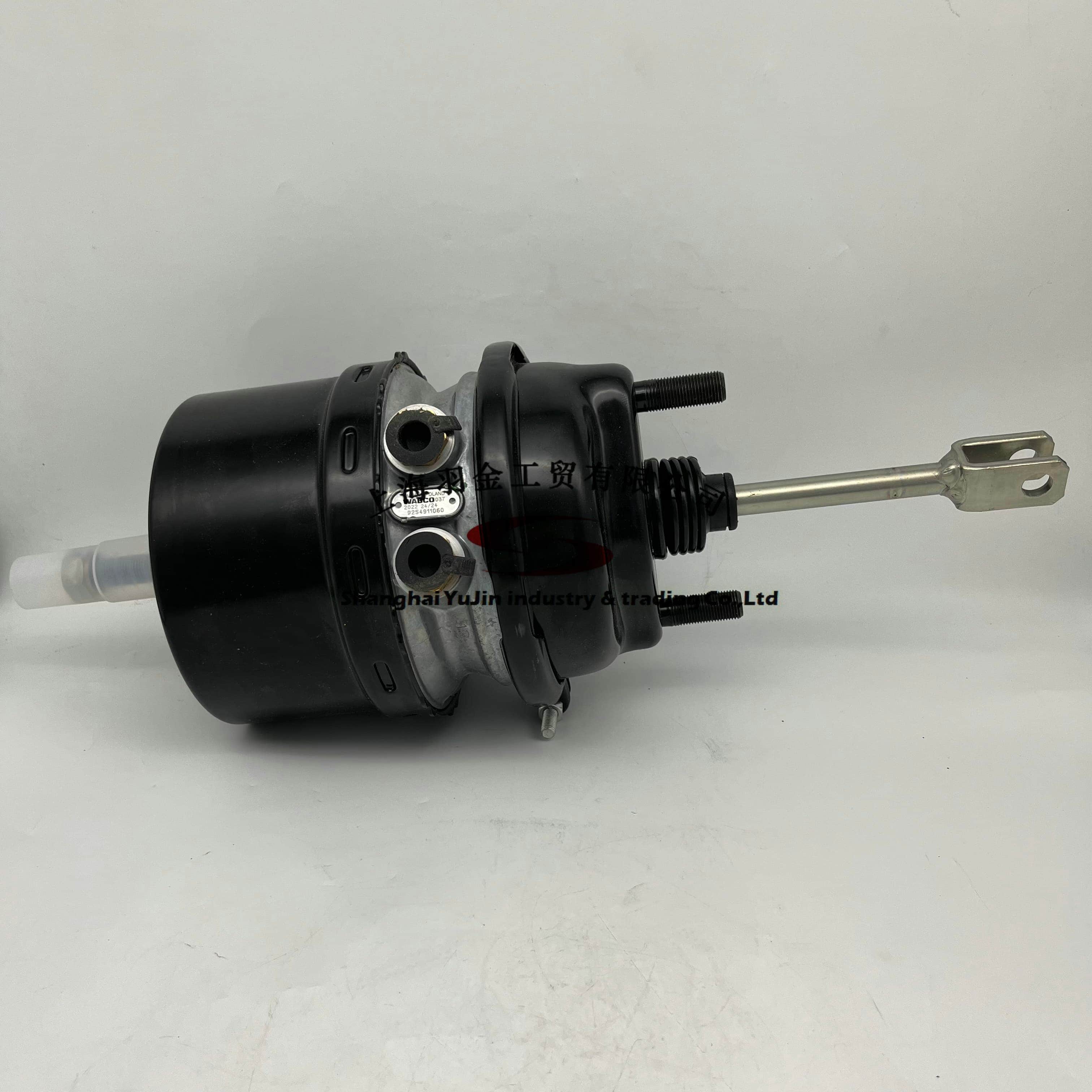

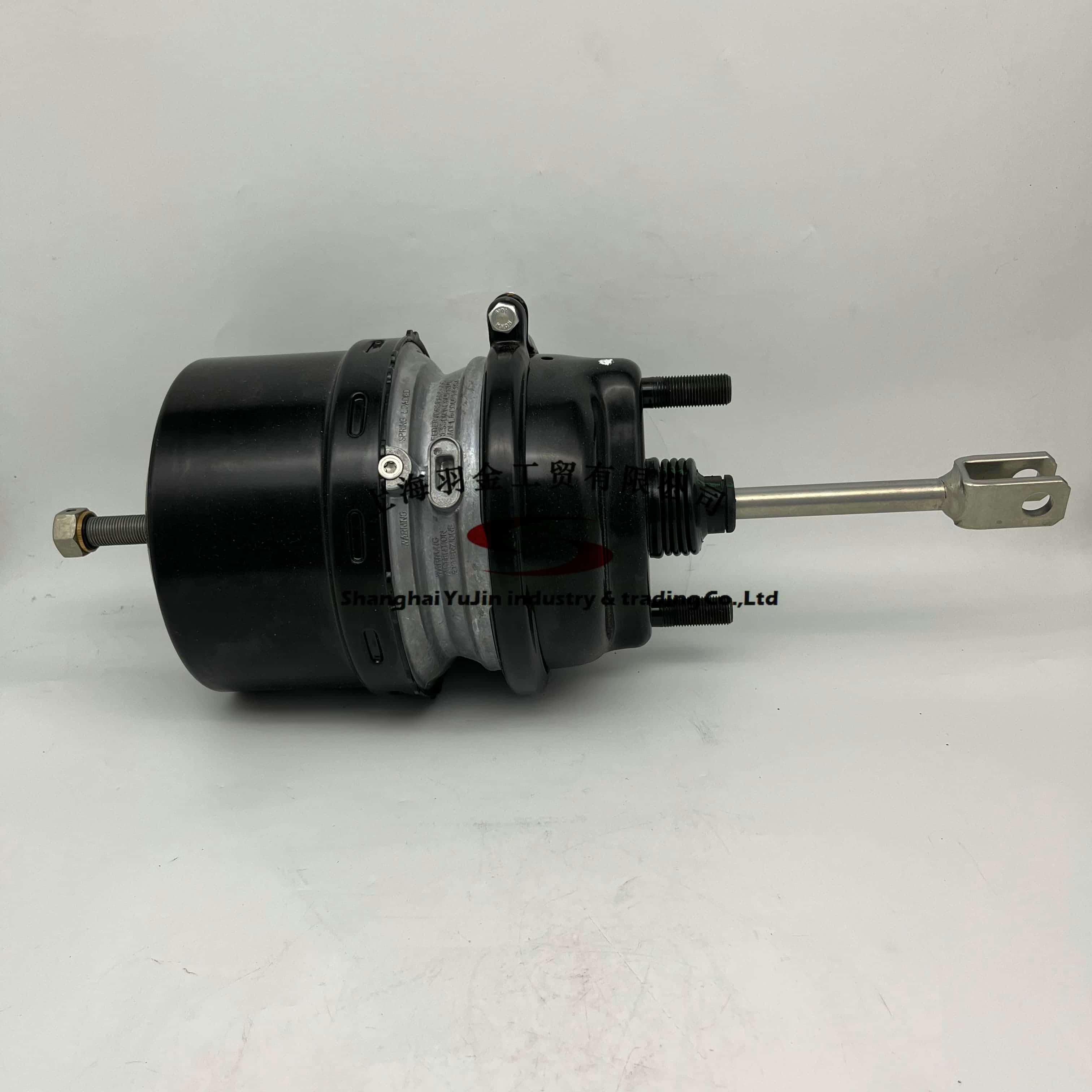

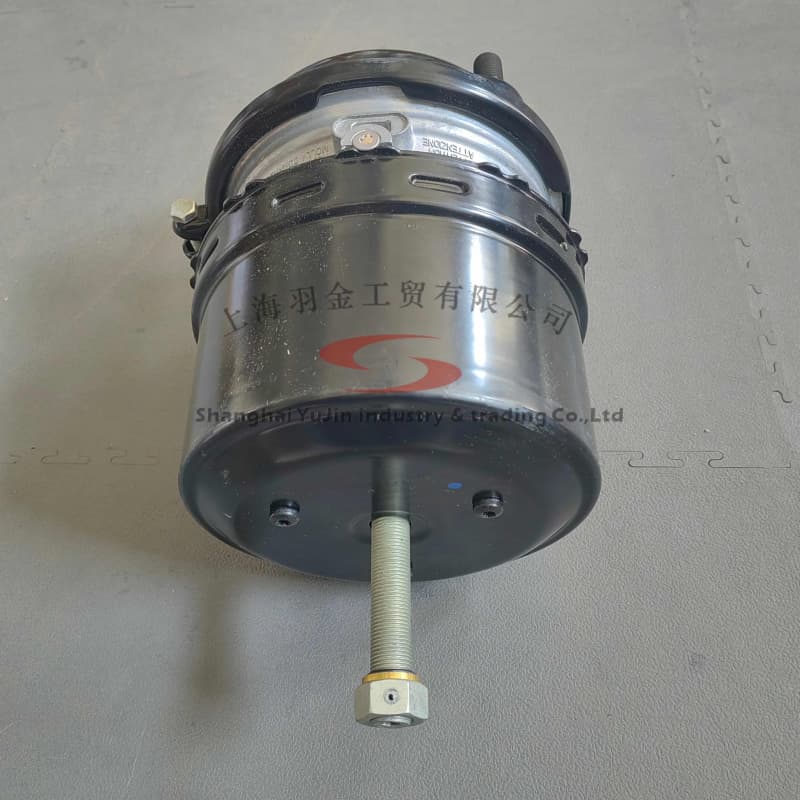

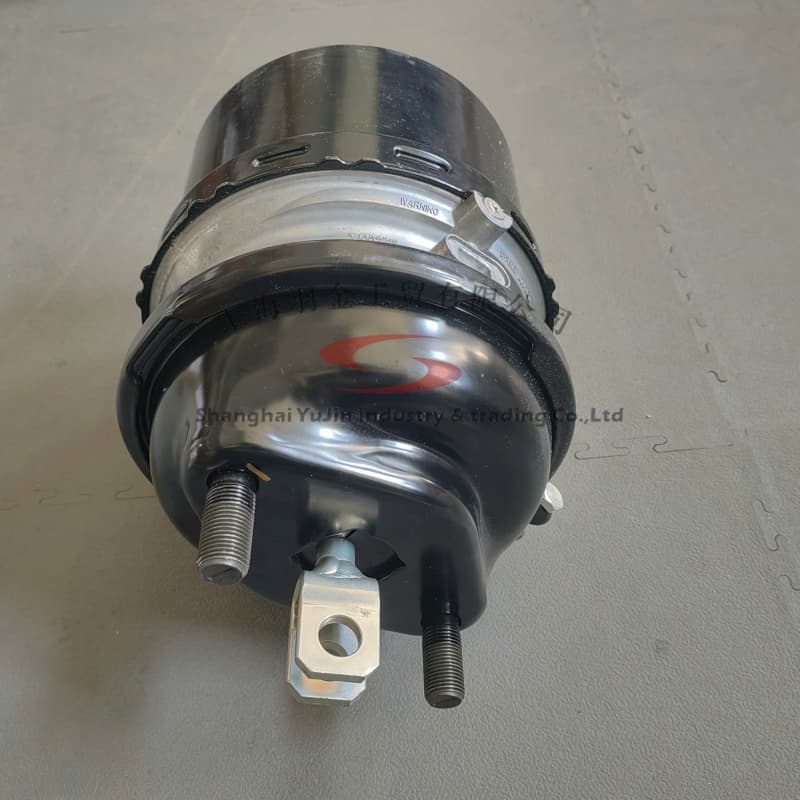

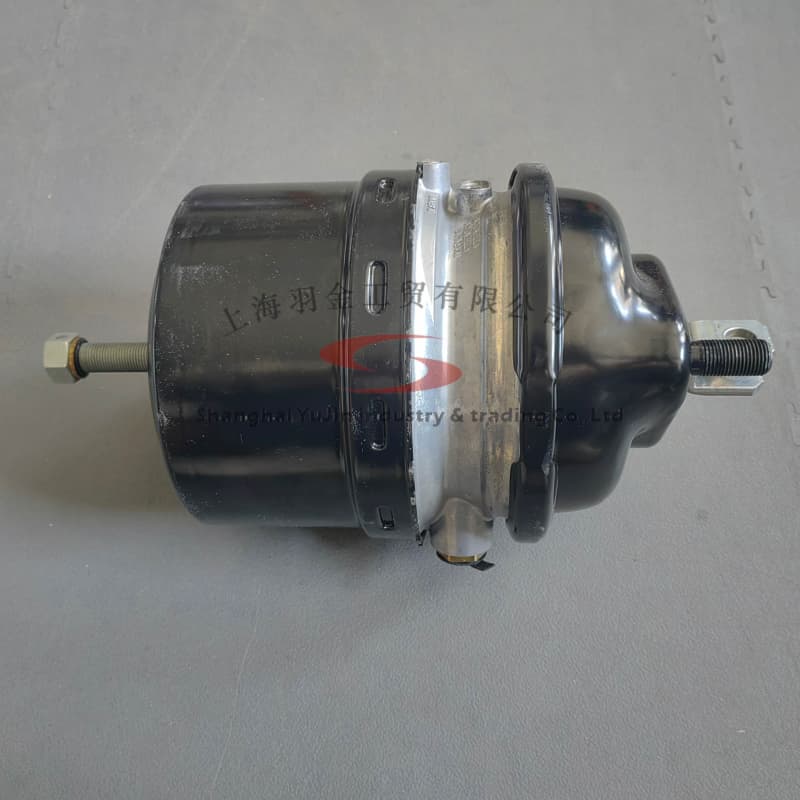

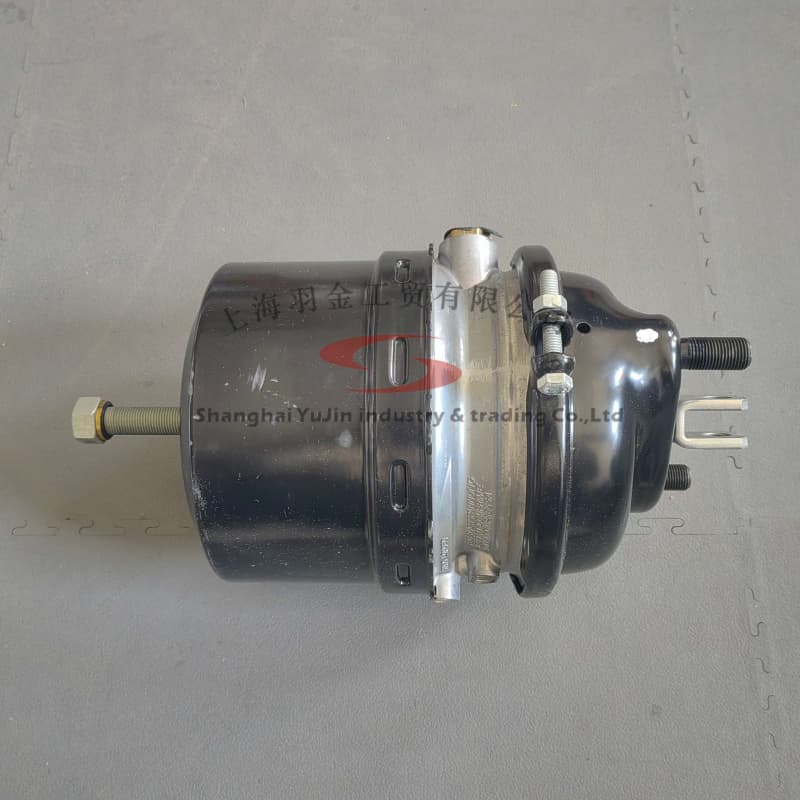

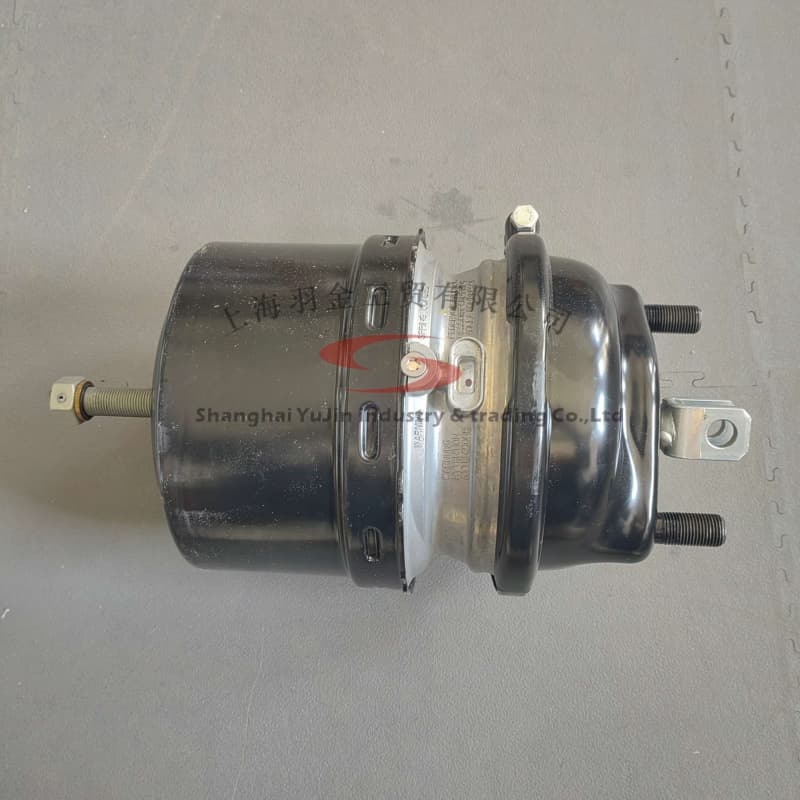

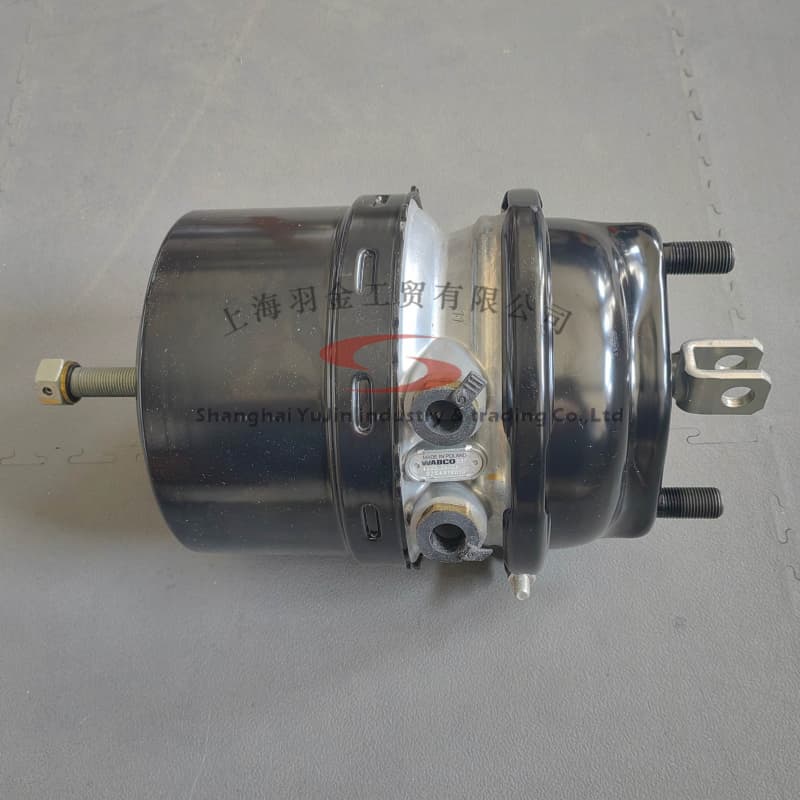

制动气室 -- 9254919010
产品介绍
| DAF | 1519159 |
| EVOBUS | A0164204118 |
| MERCEDES-BENZ | 0194209218 |
| MERCEDES-BENZ | A0194209218 |
| MERCEDES-BENZ | 0164204118 |
| MERCEDES-BENZ | A0164204118 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Bolt lengths | 1.30 in |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 14.828 |
| Clevis pin | 0.55 in |
| Comments | With VOSS 232 |
| Distance between bolts | 4.75 in |
| Max. operating pressure | 147.94 / 123.28 psi |
| Opposite | 925 491 900 0 |
| Output force 3 | 1933.36 lbf |
| Output force M | 2686.47 lbf |
| Port thread 11 | M22 x 1.5 JED - 388 |
| Port thread 12 | M22 x 1.5 JED - 388 |
| Port threads | M22 x 1.5 |
| Push-rod length | 1.46 in |
| Release pressure | 73.97 psi |
| Return-spring force | 56.20 lbf |
| Stroke | 2.24 / 2.24 in |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total lenght | 9.92 in |
| Type | 24/24 IBV |
| Type of operation | Cam |
| Version | Without boot |
| Yoke | welded: 895 801 760 4 |
