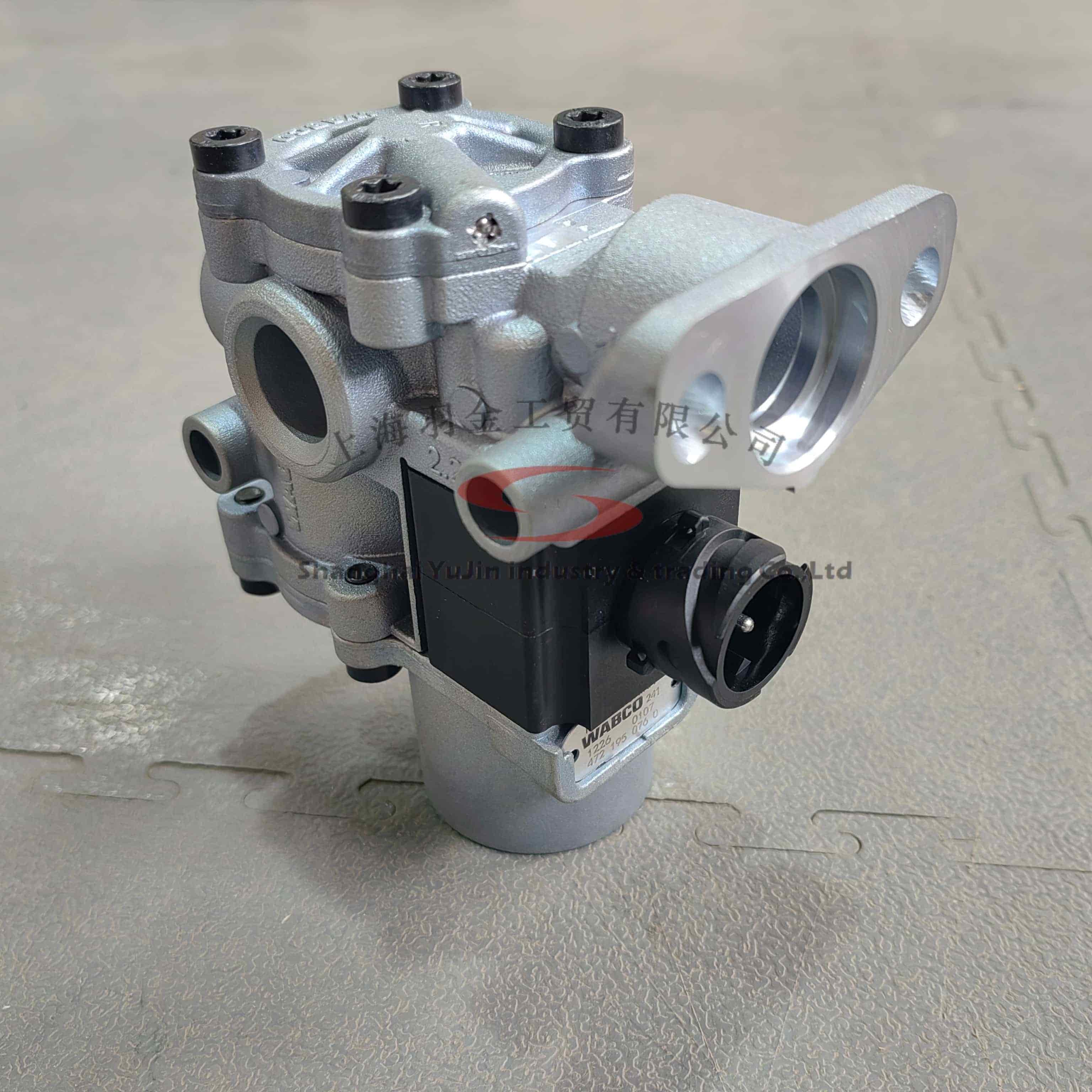

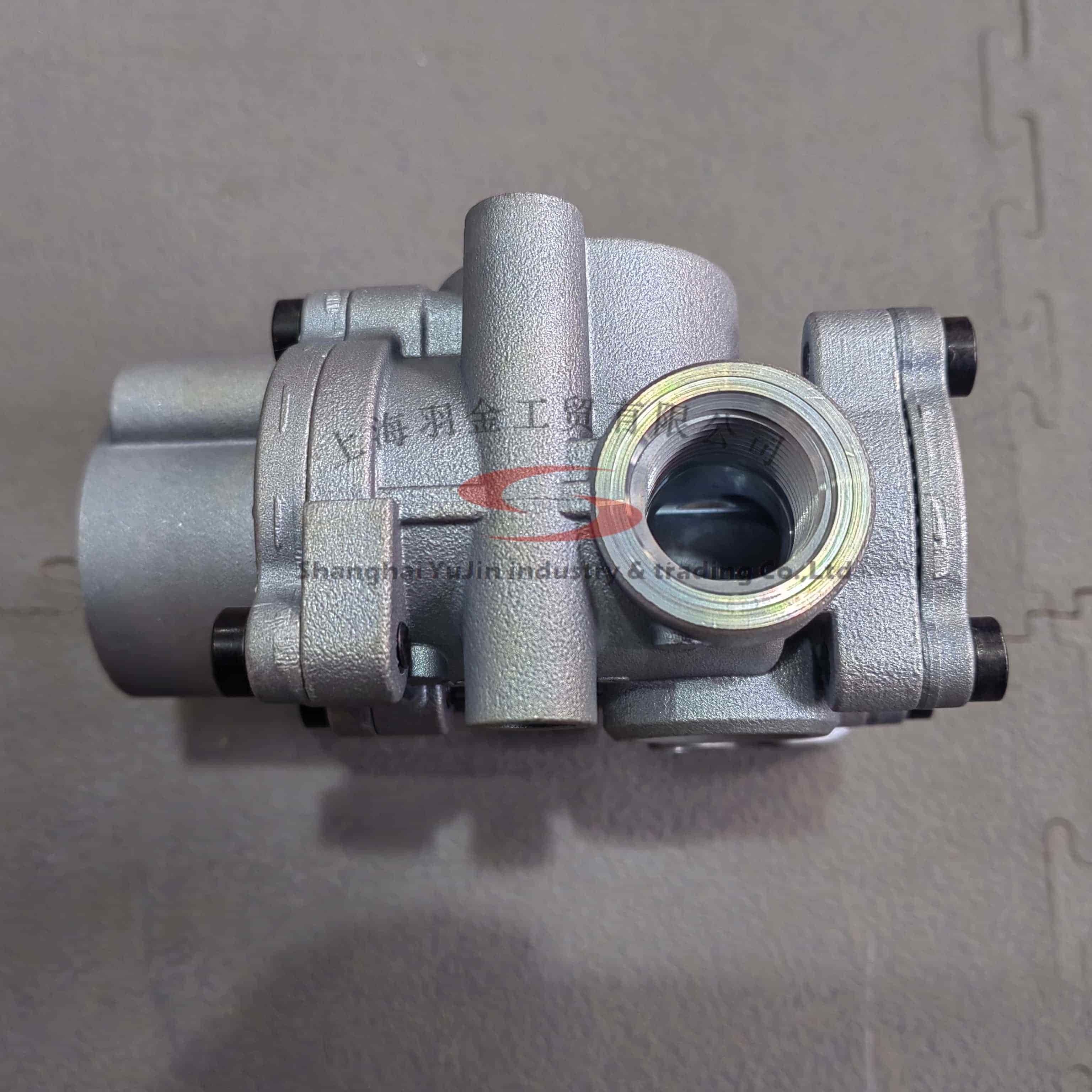

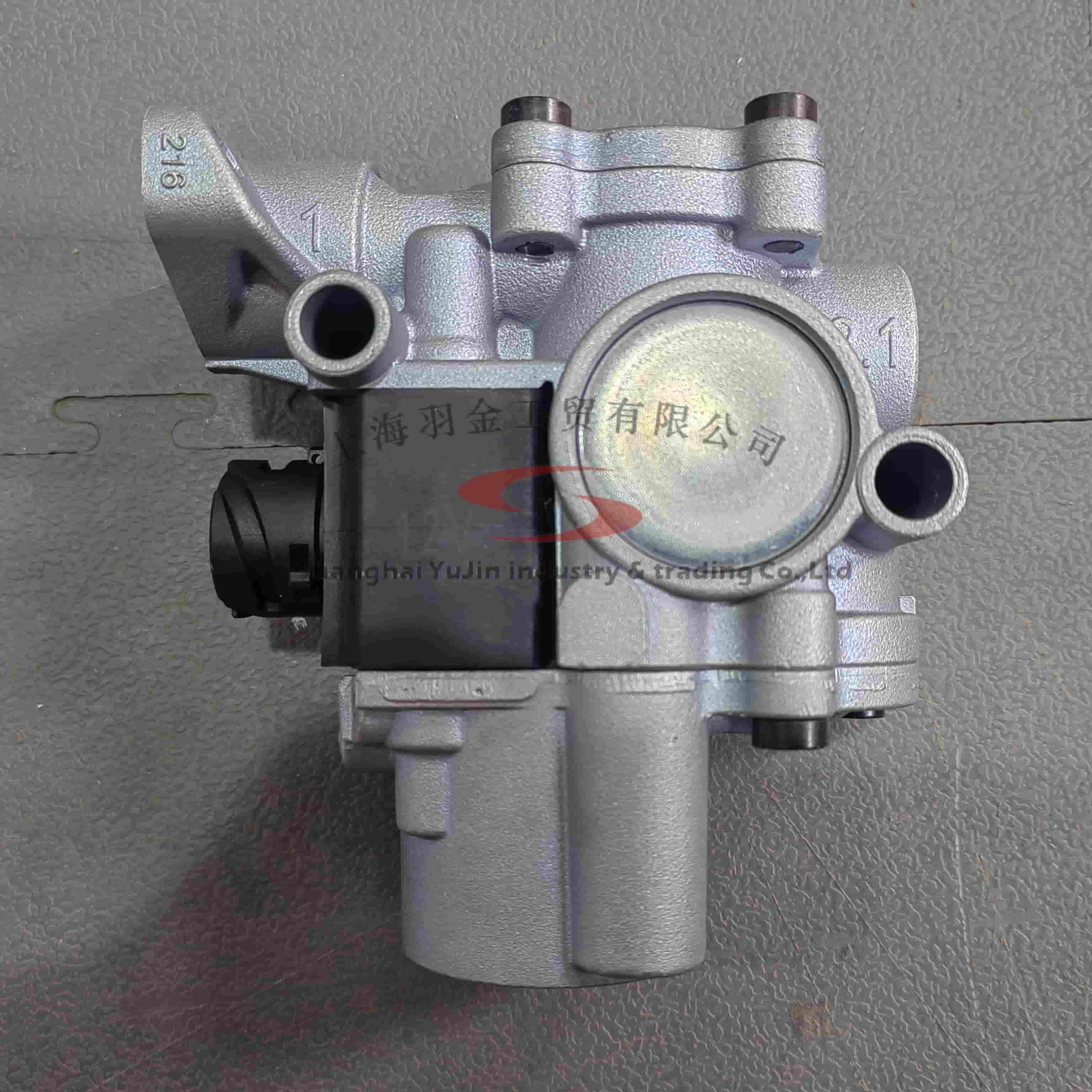

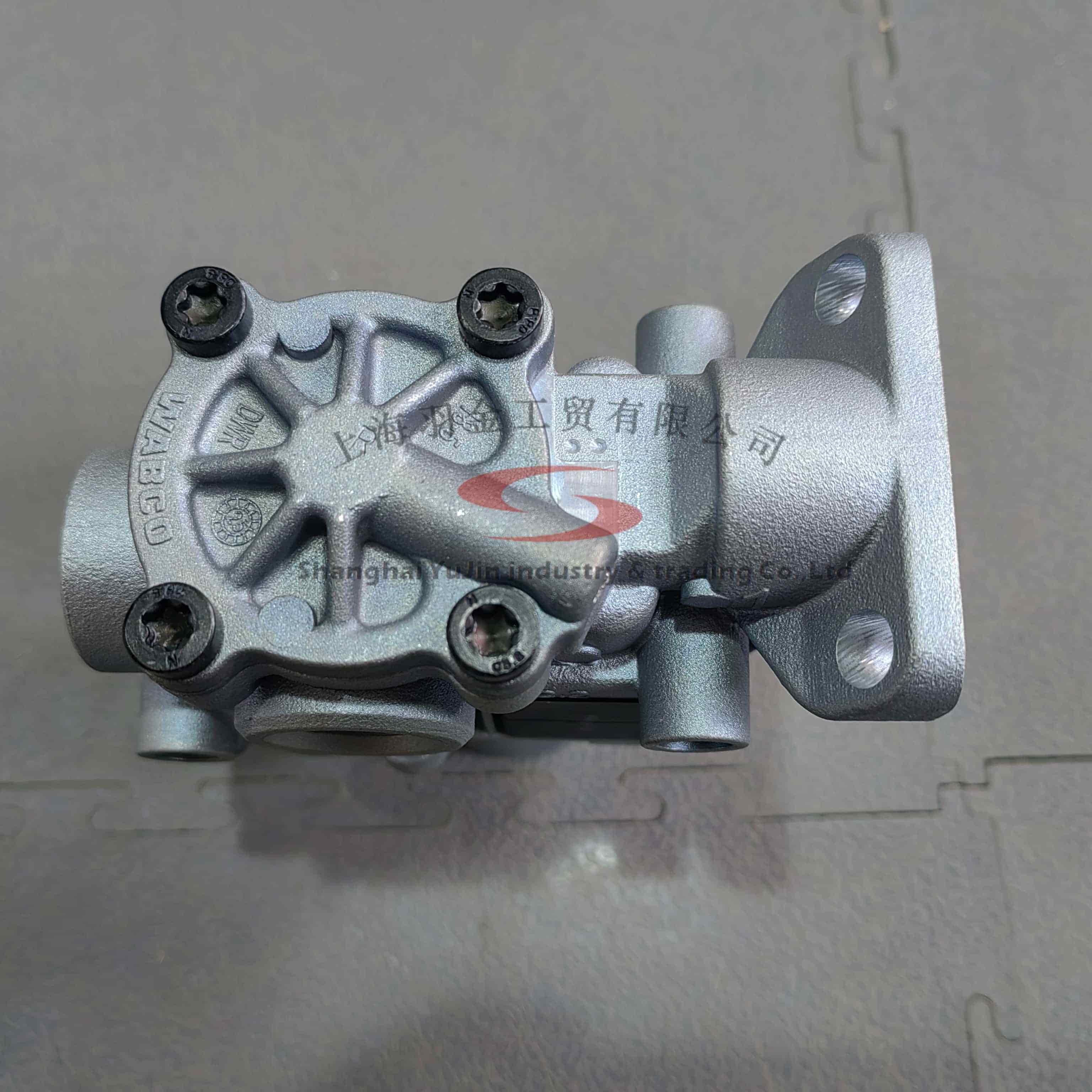

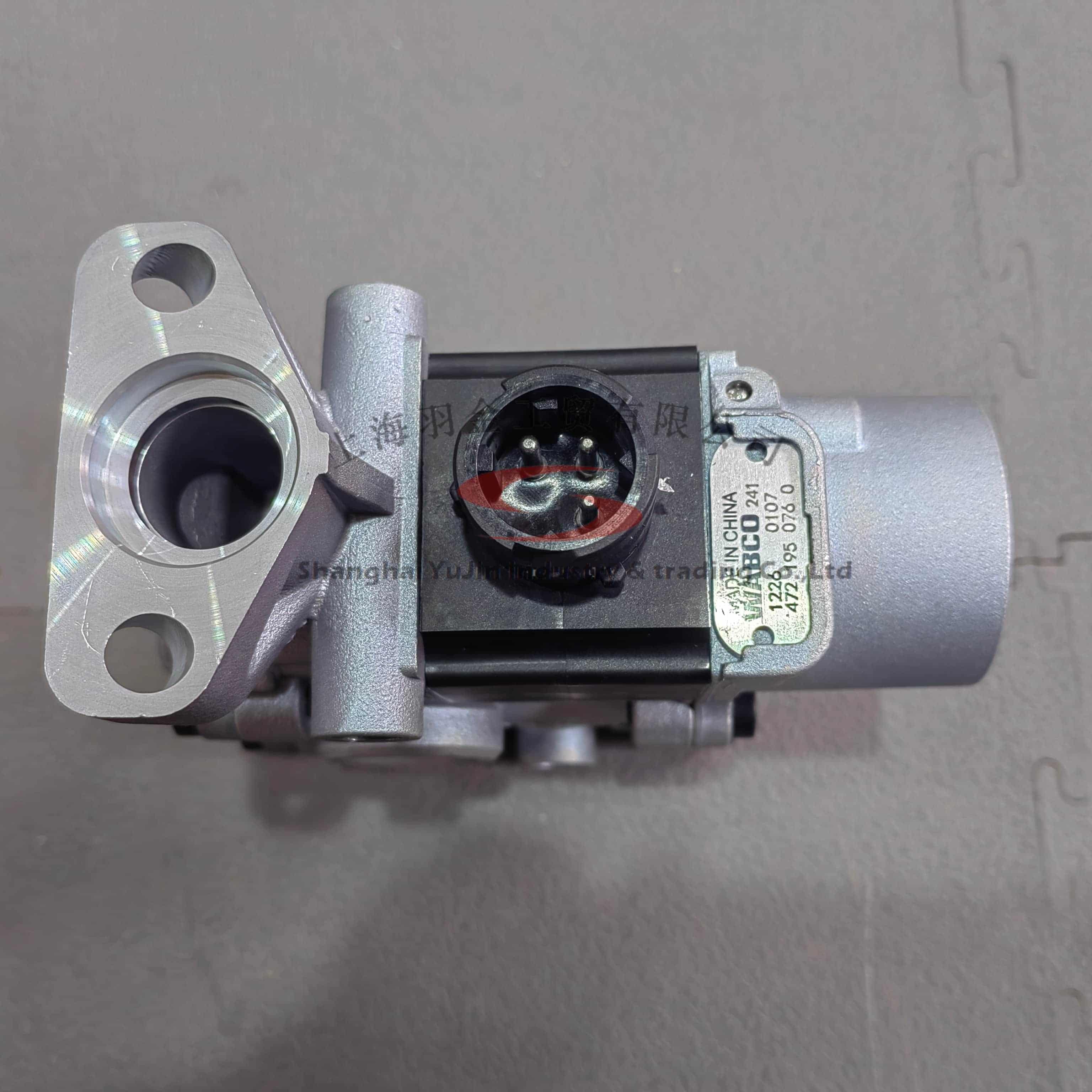

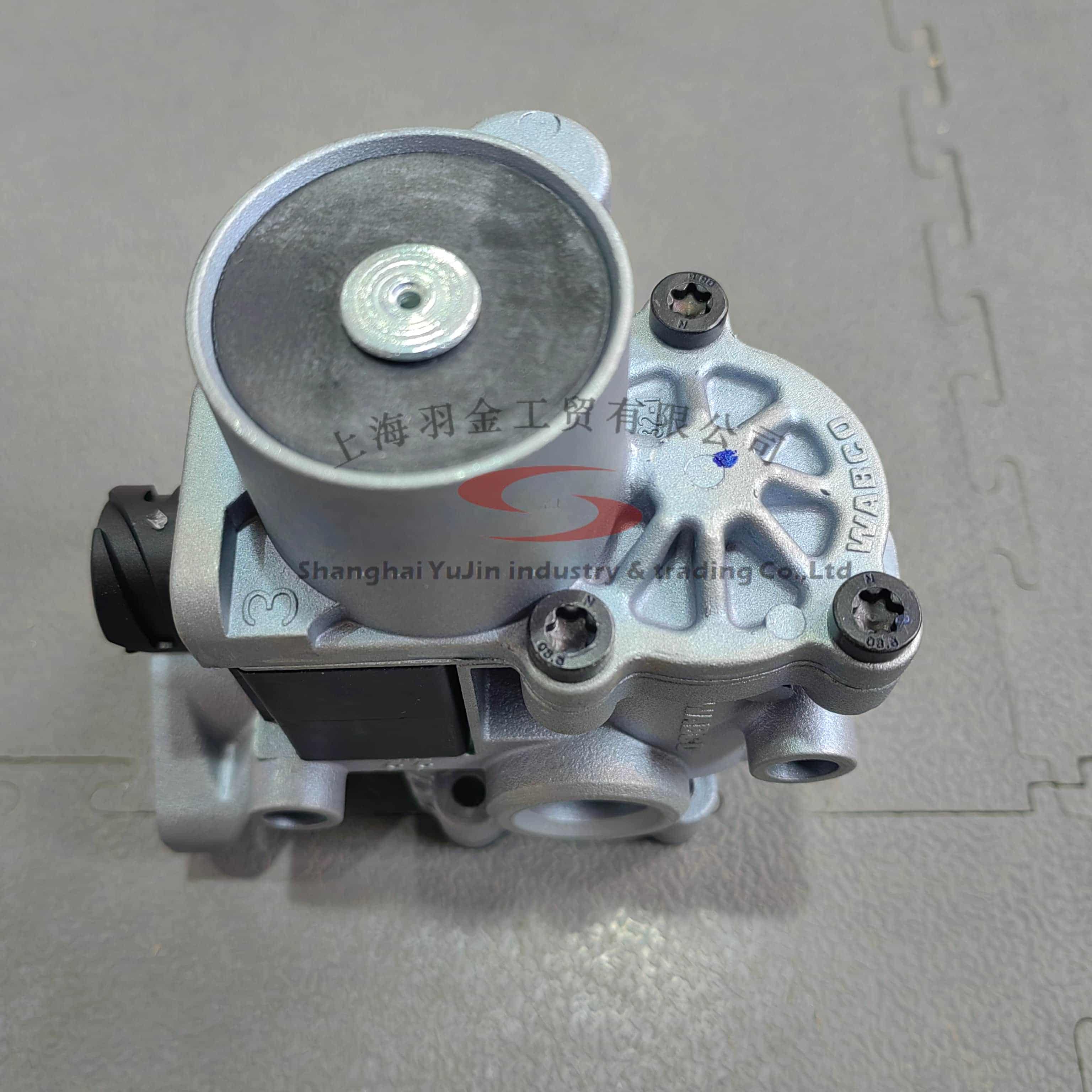

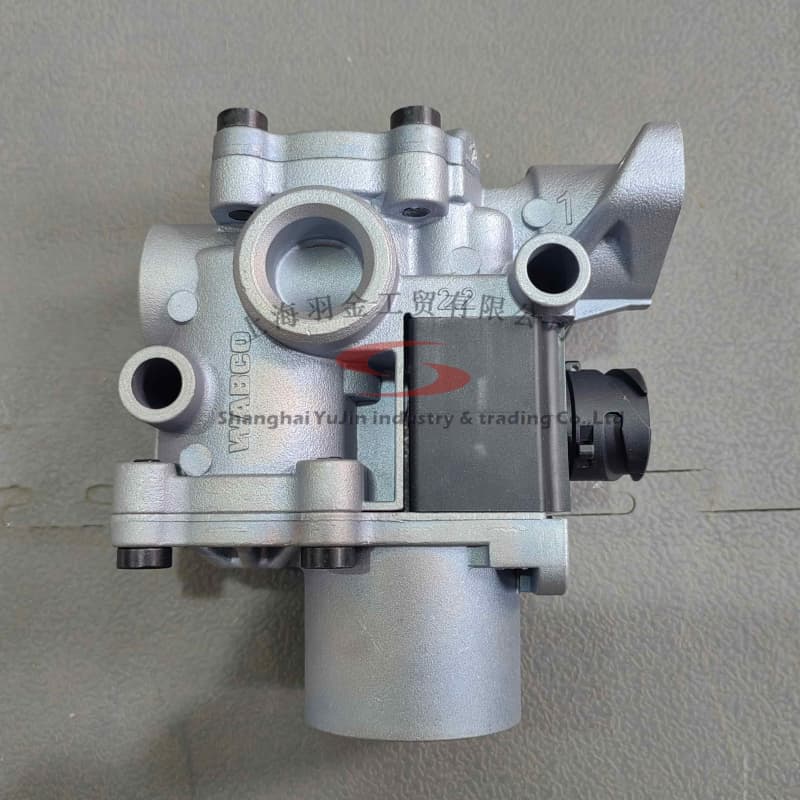

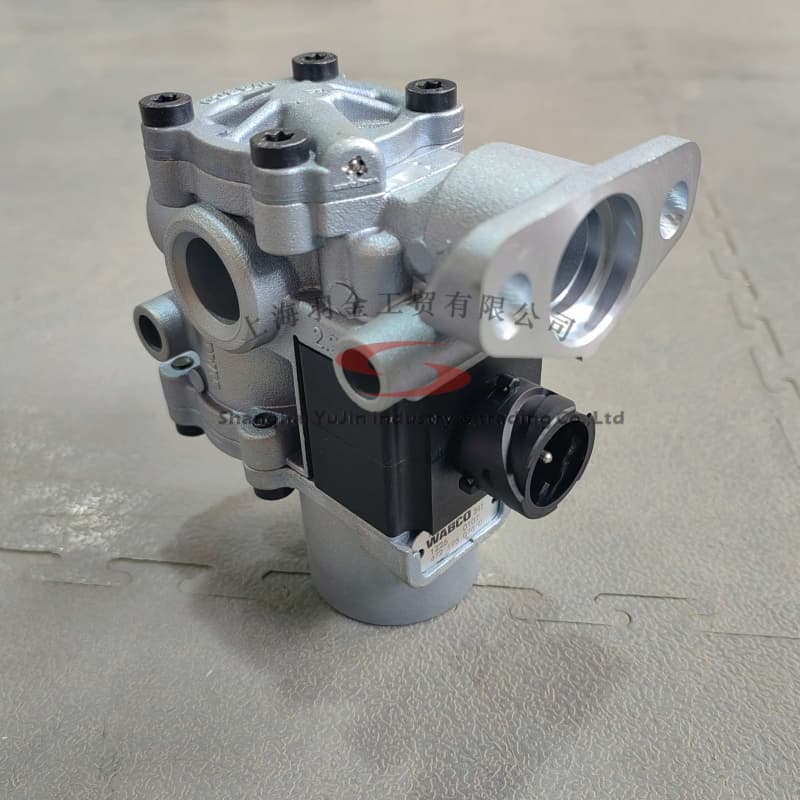

ABS电磁阀 -- 4721950760
| FREIGHTLINER | TDAS4721950760 |
| KENWORTH | S472-195-076-0 |
| MACK | 8235-S4721950760 |
| MACK | 6300-4721950760 |
| MERITOR | S4721950760 |
| PETERBILT | S472-195-076-0 |
| RENAULT | 5001856192 |
| VOLVO | TDAS4721950760 |
| VOLVO | WAB4721950760 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 0.92976 |
| Cooling | Air |
| Distance between holes | 2.8x0.79 in |
| Electrical connection | Bayonet DIN 72 585 A1-3.1-Sn/K1 |
| Exhaust | Flap |
| Max. operating pressure | 159.5 psi |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | Flange (Ø24) |
| Port thread 2.1 | 1/2 "- 14 Dry Seal NPTF |
| Port threads | 1/2'' - 14NPTF |
| Protection class | IP 66, IP 69K EN 60529, IEC 529 |
| Rated current | 2220 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 12 V |
