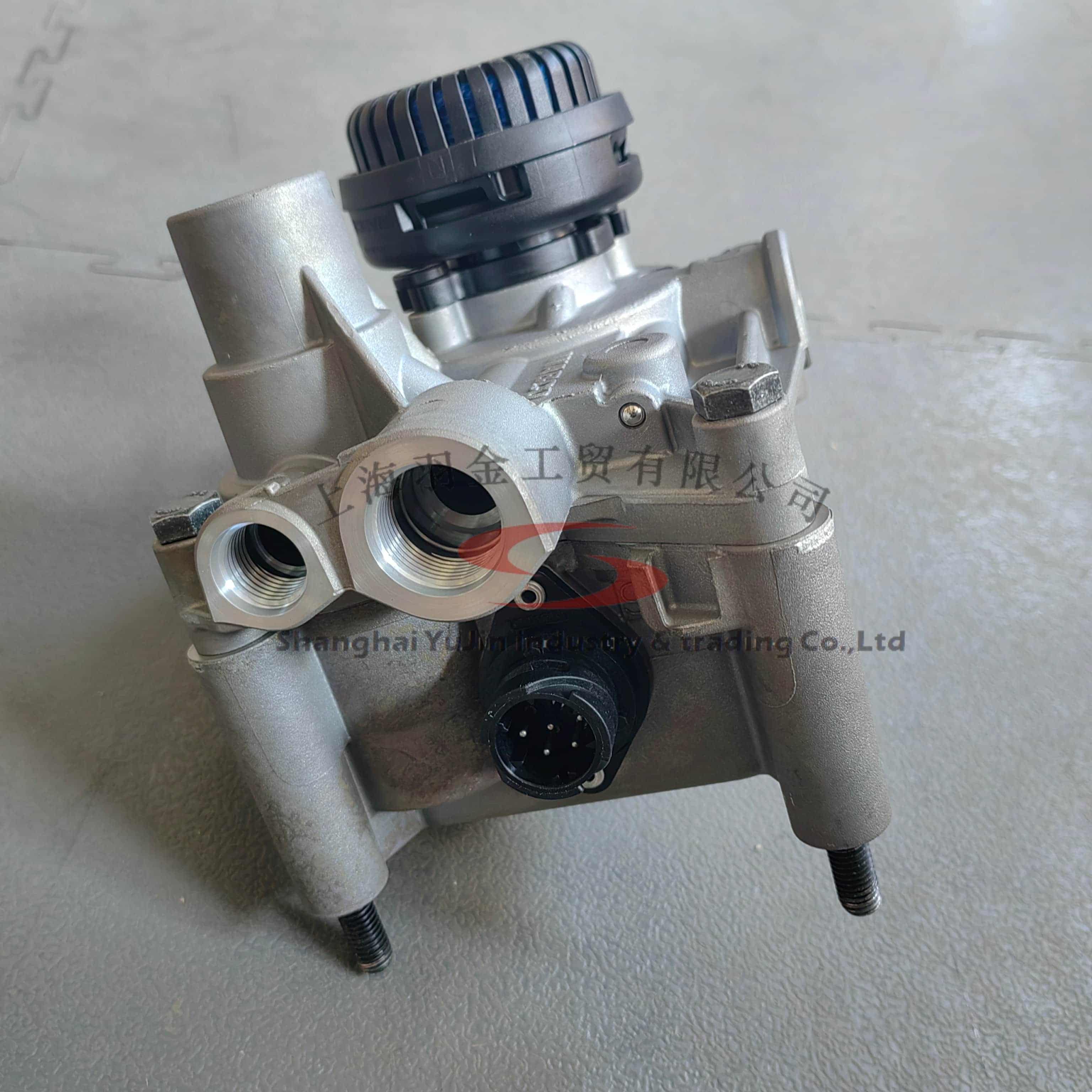

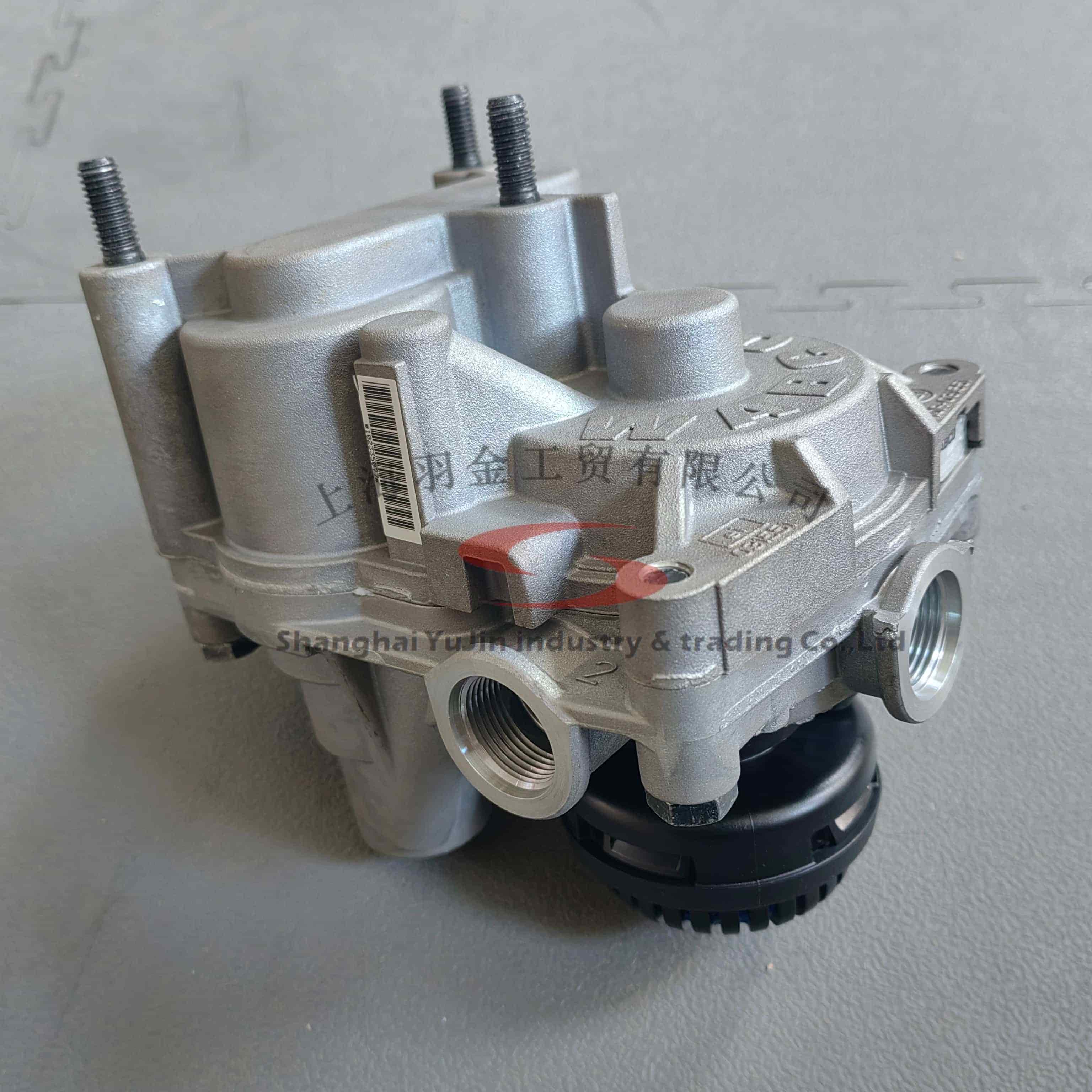

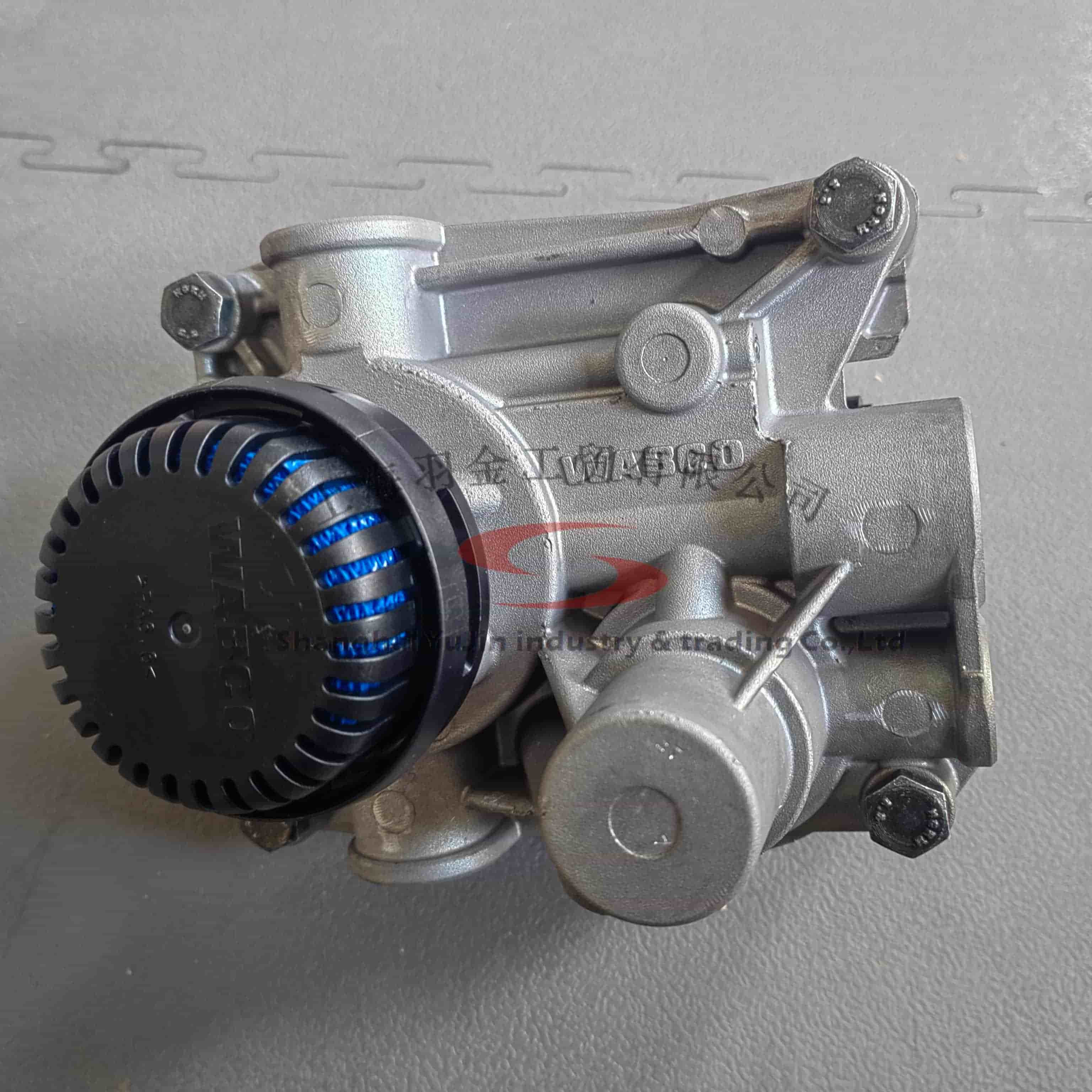

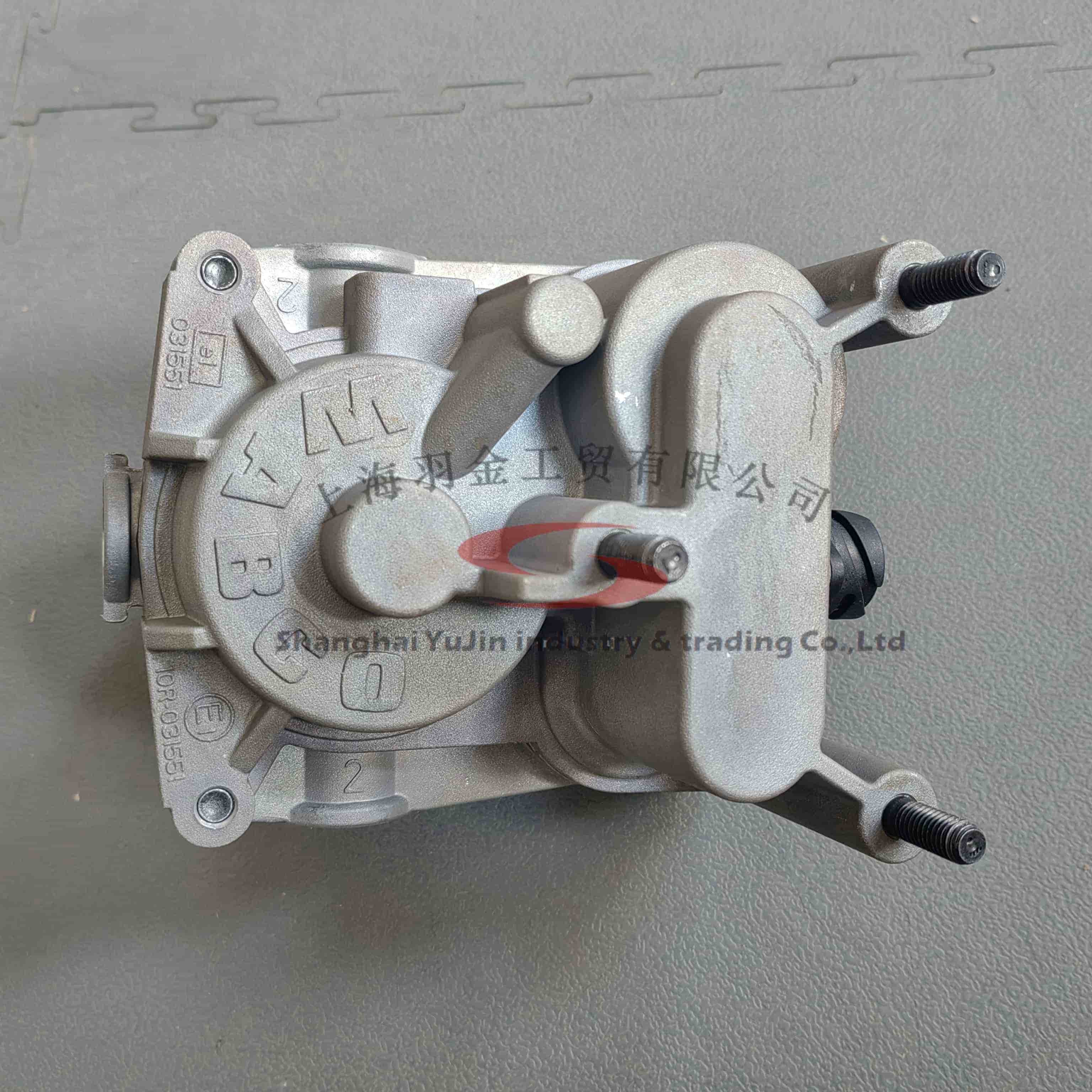

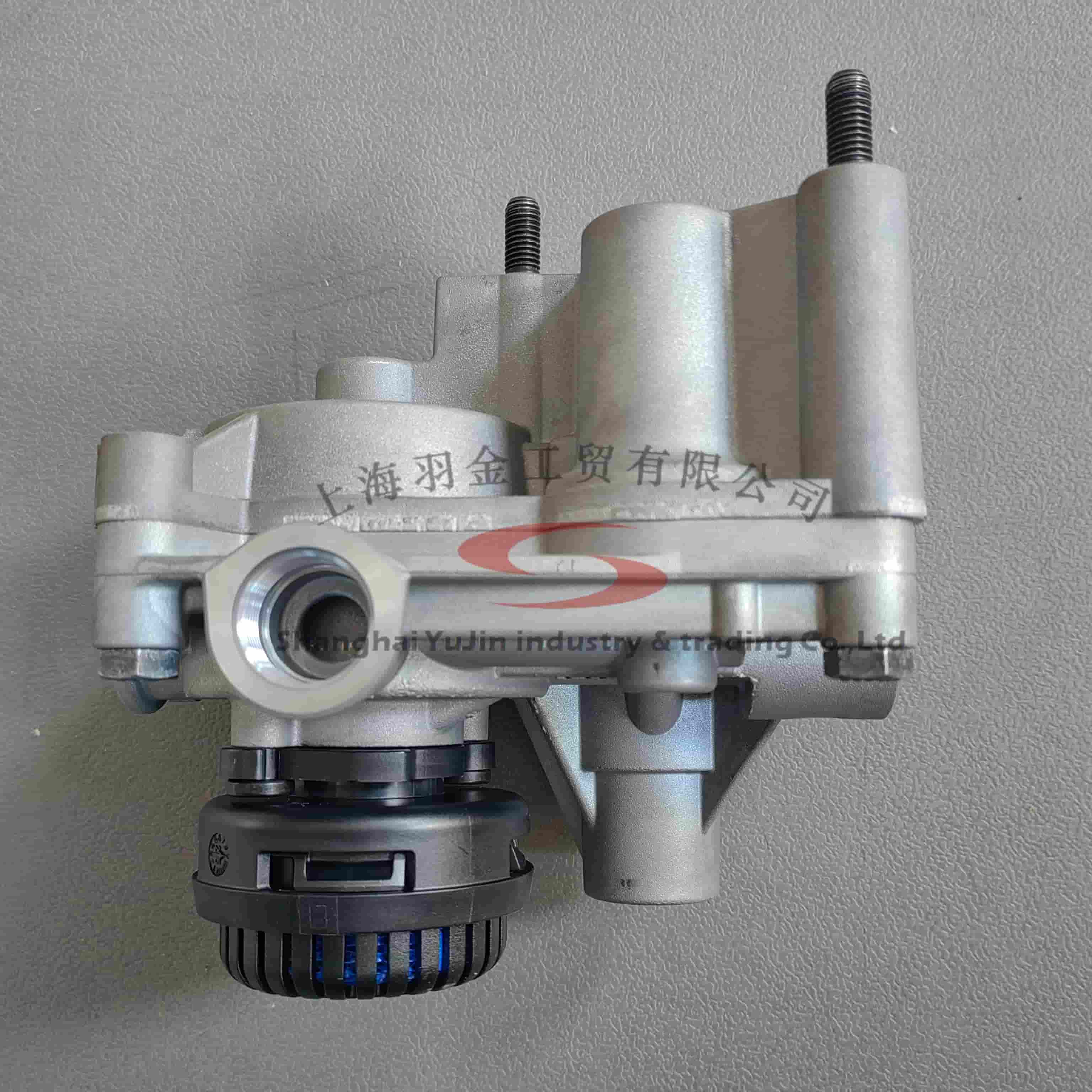

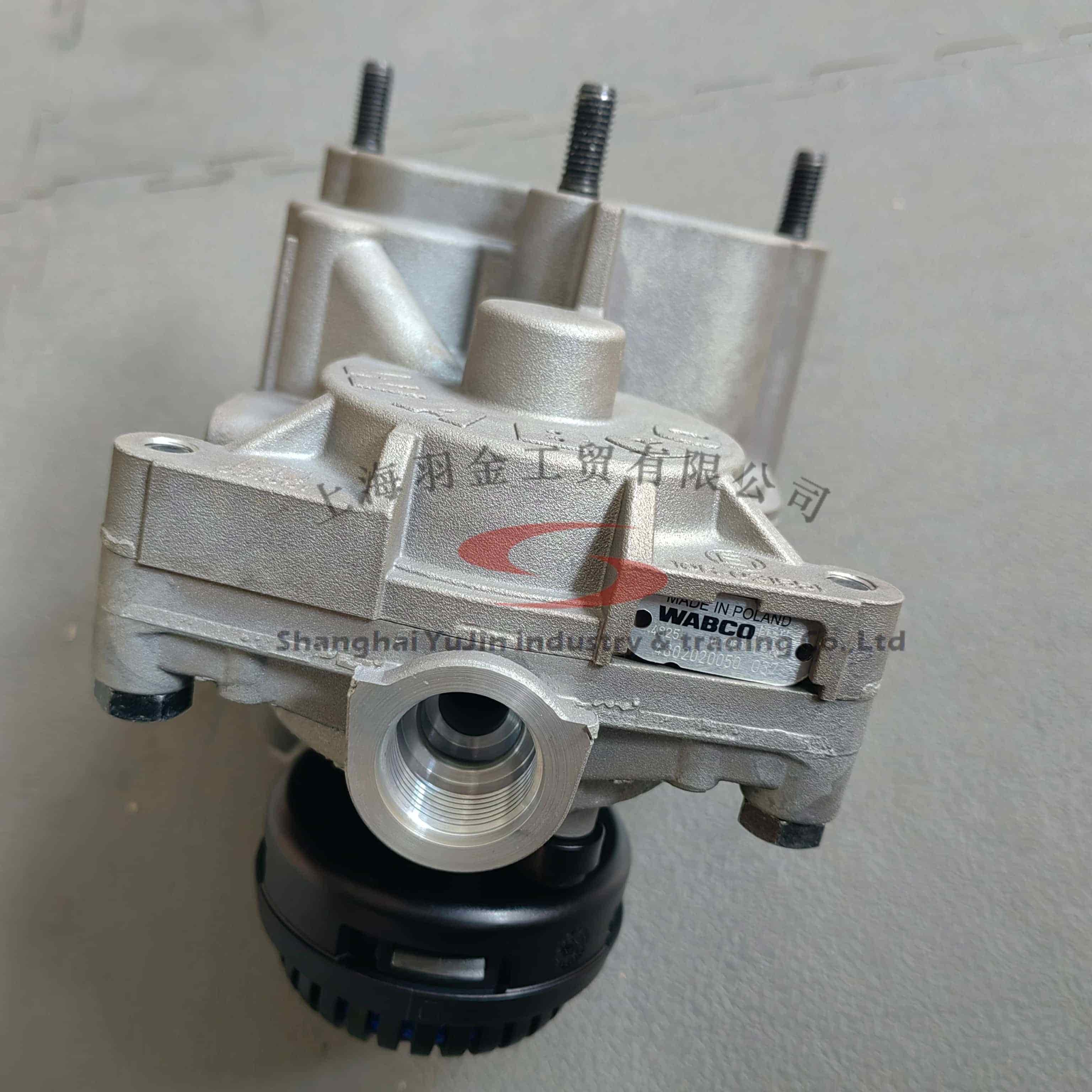

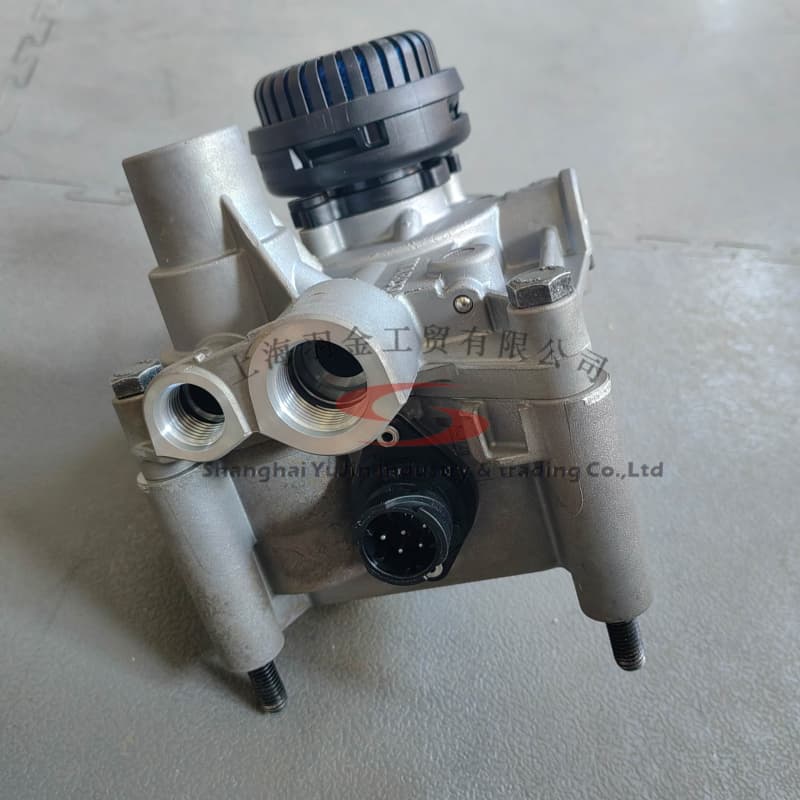

WABCO威伯科比例继动阀4802020050 1448019 1315686 A0054291344 1448019 N2521160022 54291344 A0054291344 44299344 1448019 1935137 DZ95259364001 41448019
比例继动阀 -- 4802020050
产品介绍
| DAF | 1448019 |
| DAF | 1315686 |
| EVOBUS | A0054291344 |
| LEYLAND DAF | 1448019 |
| MAN | N2521160022 |
| MERCEDES-BENZ | 0054291344 |
| MERCEDES-BENZ | A0054291344 |
| MERCEDES-BENZ | 0044299344 |
| PACCAR | 1448019 |
| SCANIA | 1935137 |
| SHAANXI | DZ95259364001 |
| VDL | 41448019 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Application | 8 x 4 |
| Calculated Volume (dm³) | 3.146 |
| Distance between bolts | 3.94x2.52 in |
| Electrical connection | Bayonet (DIN 72585) |
| Max. operating pressure | 147.94 psi |
| Mounting | 3x M8 |
| Port thread 1 | 2x M22 x 1.5 JED-388-4 |
| Port thread 21 | M22 x 1.5 JED - 388-4 |
| Port thread 22 | M22 x 1.5 JED - 388-4 |
| Port thread 3 | Silencer |
| Port thread 4 | M16 x 1.5 JED - 388-4 |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 1400 mA |
| Silencer | 4324070500 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Thread | Voss 232 |
| Voltage | 24 V |
