WABCO威伯科手控阀9617230010 9617230010 Z445612000004 Z445612000004 371274 TDAS9617230010 500002949 9617230010 S9617230010 6300-9617230010 5660811 S9617230010 S9617230010 2089921 M225975 637211060 40371274

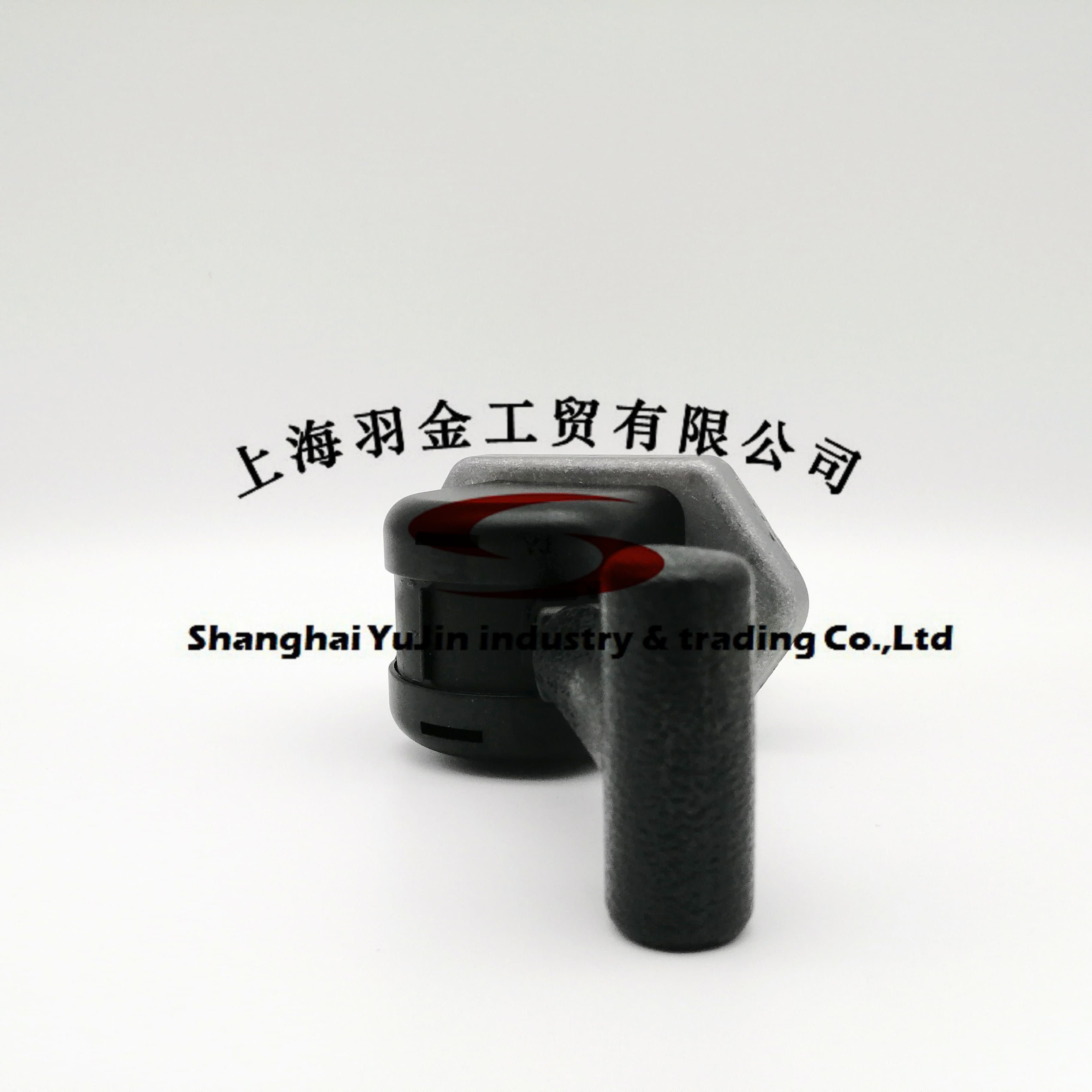

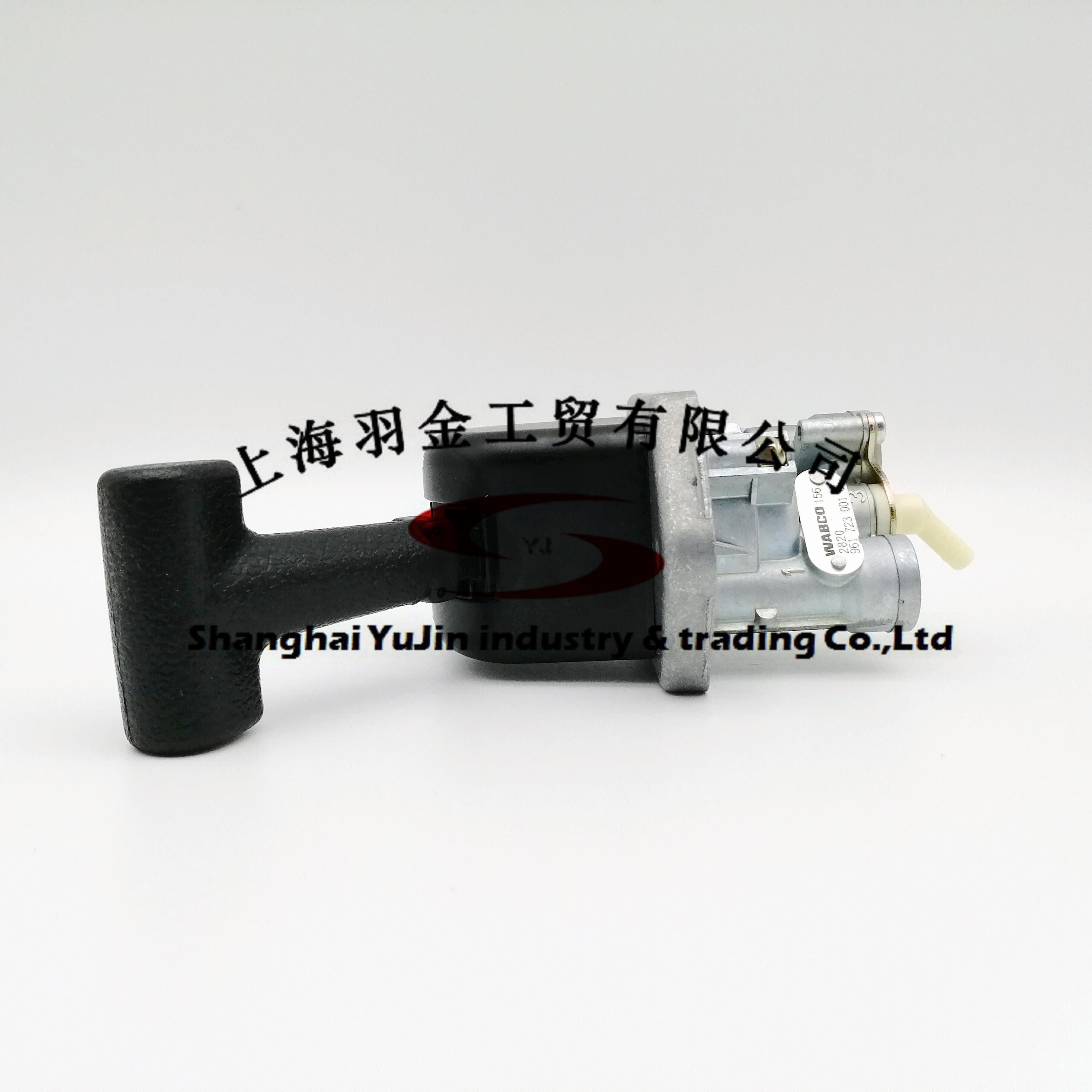

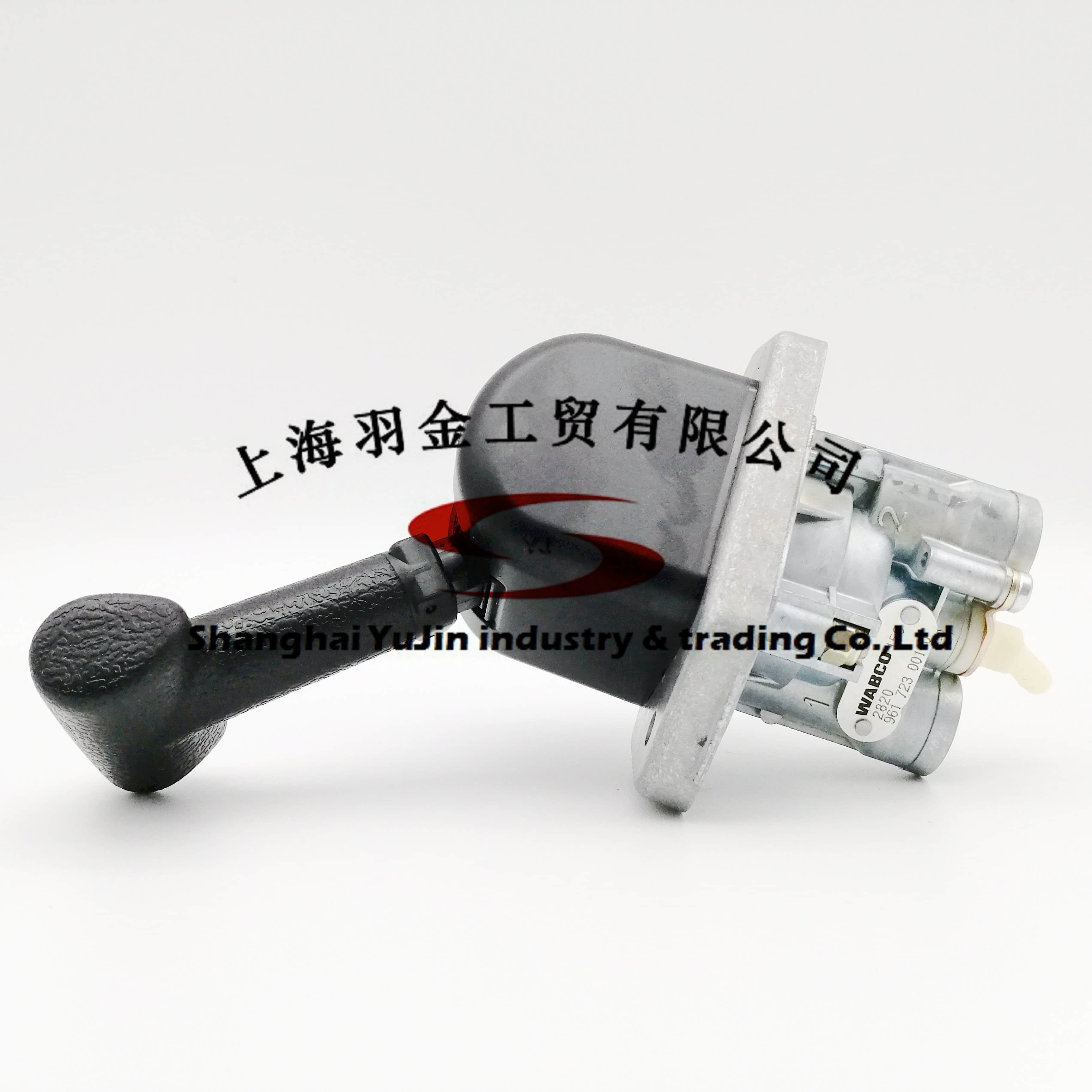

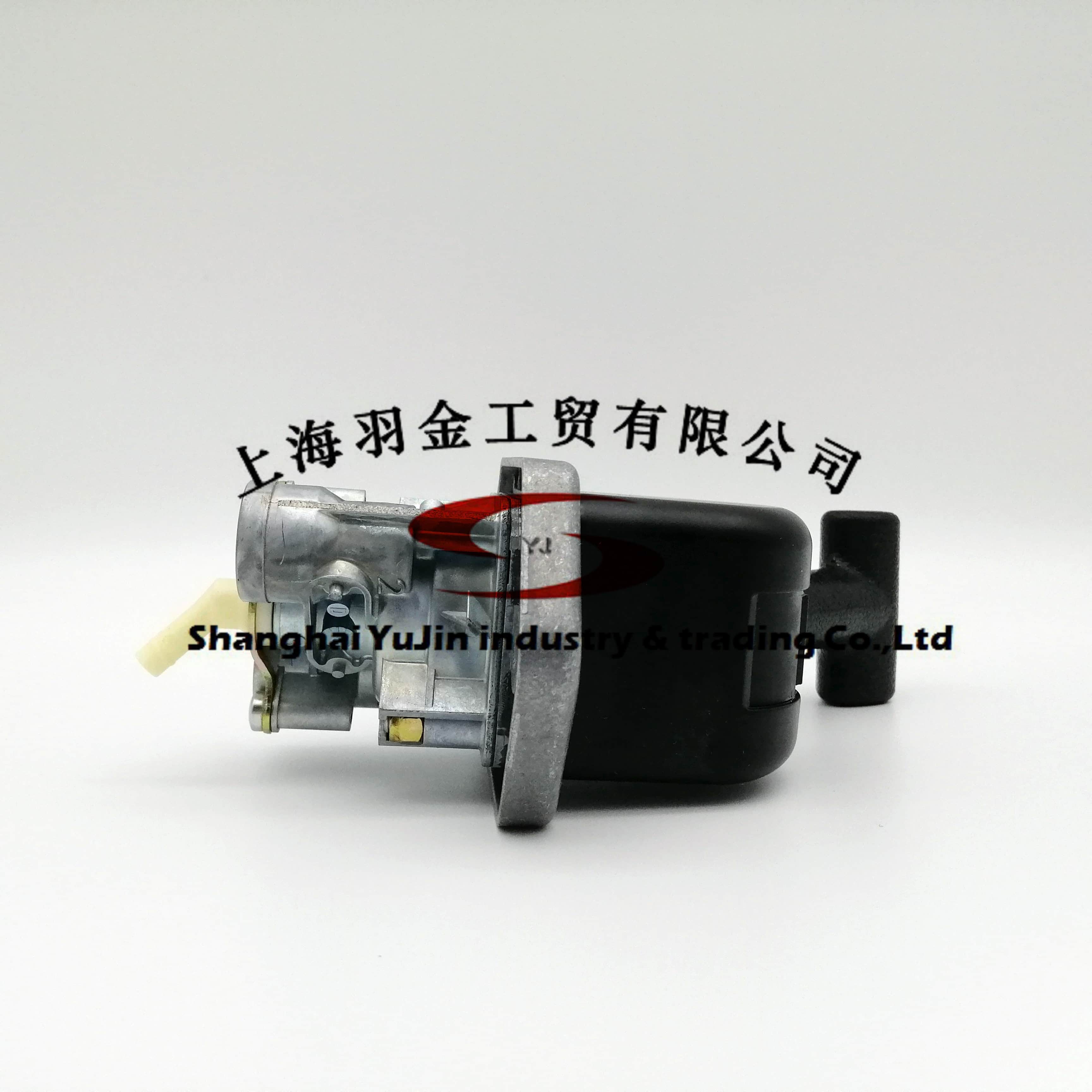

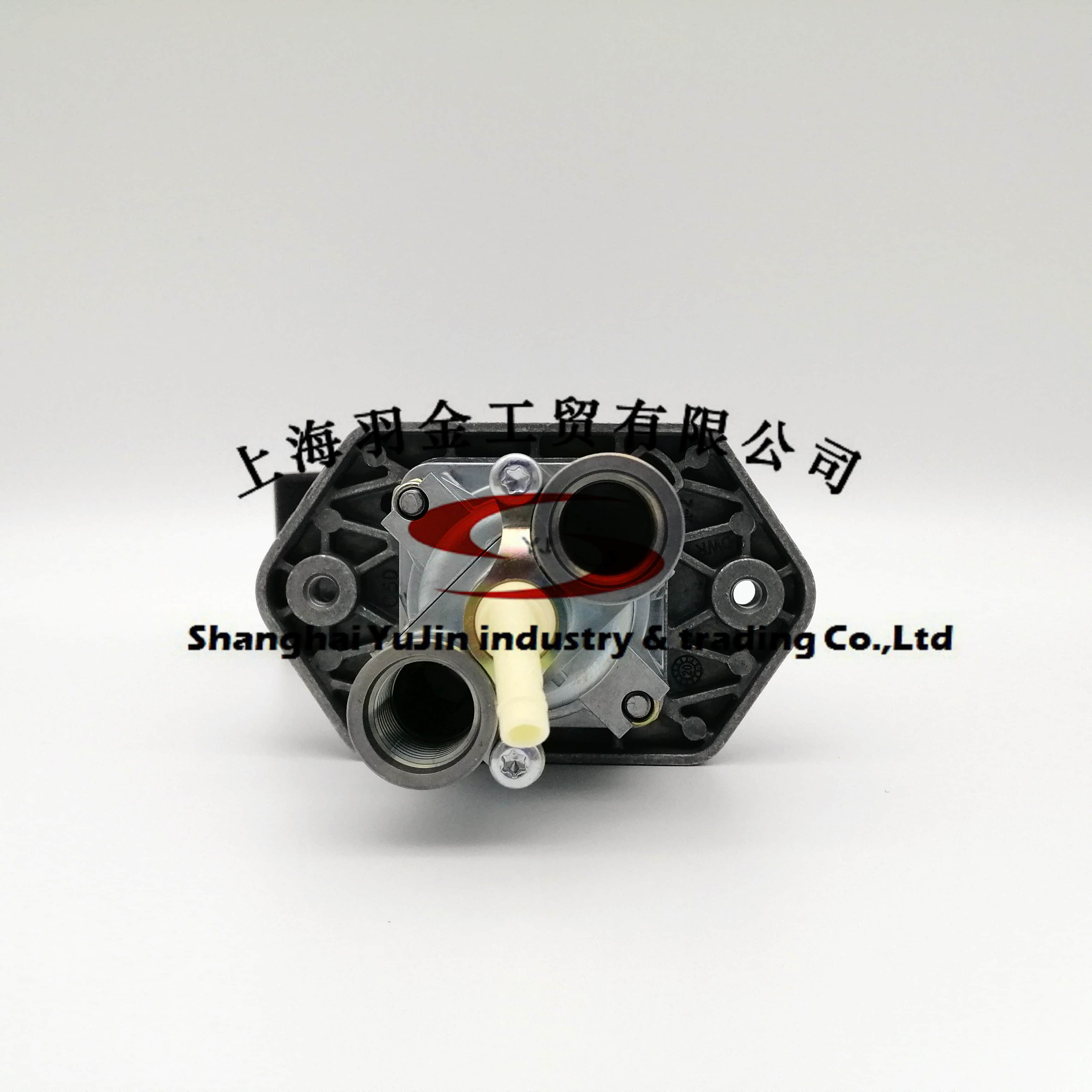

手控阀 -- 9617230010
产品介绍
| ALEXANDER DENNIS | 9617230010 |
| ASHOK LEYLAND | Z445612000004 |
| DAEWOO | Z445612000004 |
| DAF | 0371274 |
| FREIGHTLINER | TDAS9617230010 |
| IRISBUS | 500002949 |
| IRISBUS | 9617230010 |
| KENWORTH | S9617230010 |
| MACK | 6300-9617230010 |
| MAFI | 0005660811 |
| MERITOR | S9617230010 |
| PETERBILT | S9617230010 |
| SCANIA | 2089921 |
| TATRA | M225975 |
| VAN HOOL | 637211060 |
| VDL | 40371274 |
| VDL | 0371274 |
| VDL | 28210101100 |
| VOLVO | WAB9617230010 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Actuation angle | 85° |
| Calculated Volume (dm³) | 1.2523 |
| Color | Black/Black |
| Distance between holes | 3.15 in |
| Exhaust | Hose nozzle Ø 6.0 mm |
| Max. operating pressure | 145.0 psi |
| Mounting | M6 |
| Port thread 1 | M16 x 1.5 JED - 464 |
| Port thread 21 | M16 x 1.5 JED - 464 |
| Port threads | M16 x 1.5 VOSS |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875296676 |
| Size (mm x mm x mm) | 179 x 106 x 66 |
| UPC | 193133449218 |
| Weight (kg) | 0.508 |
