WABCO威伯科双释放阀9630010510 1506448 7069646 7886 6916 164265 2102006 S9630010510 58124230 5812423 8283012000 21151103260 336490 1133254 4112002 10102276 A05021210 9630010510 6300-9630010510 S9630010510

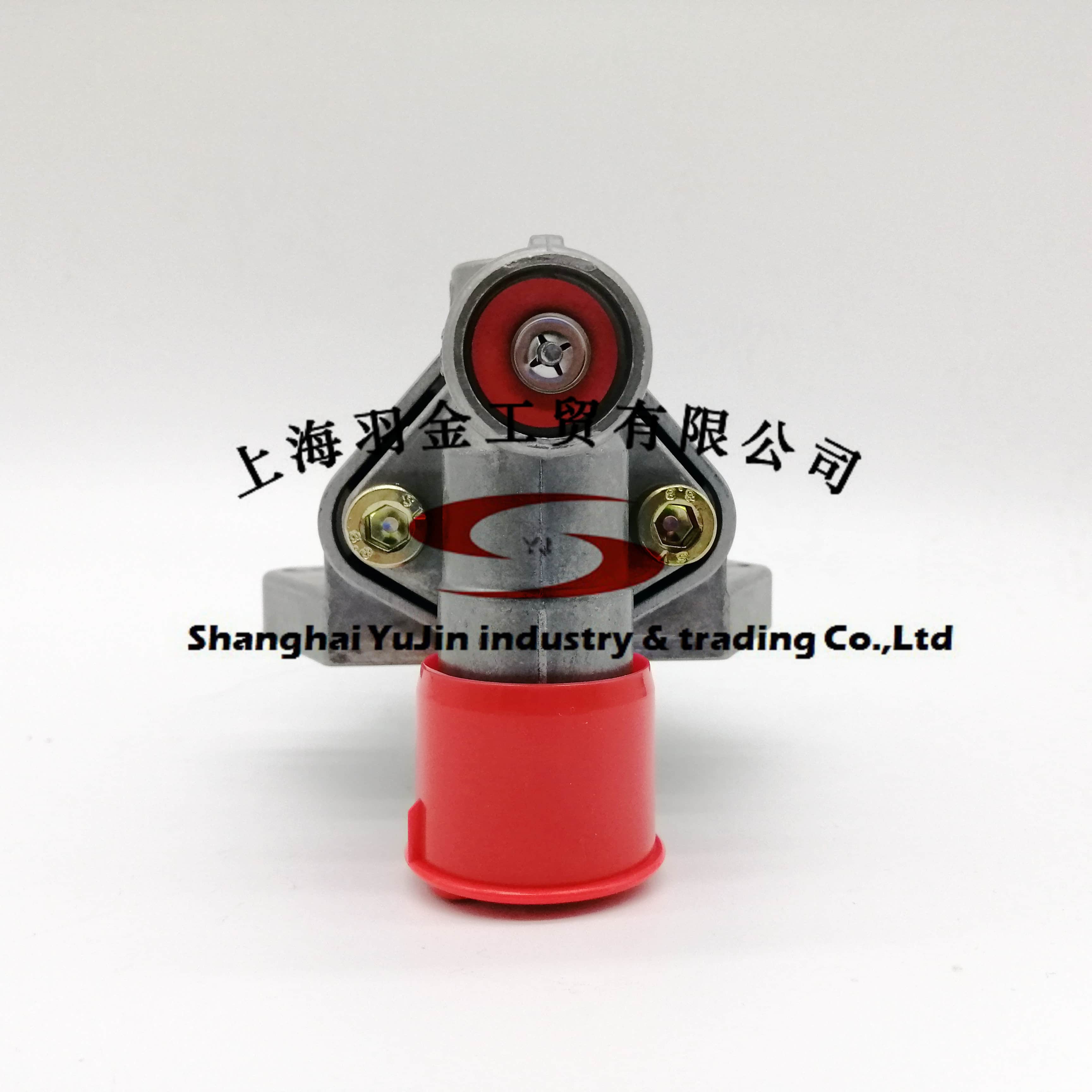

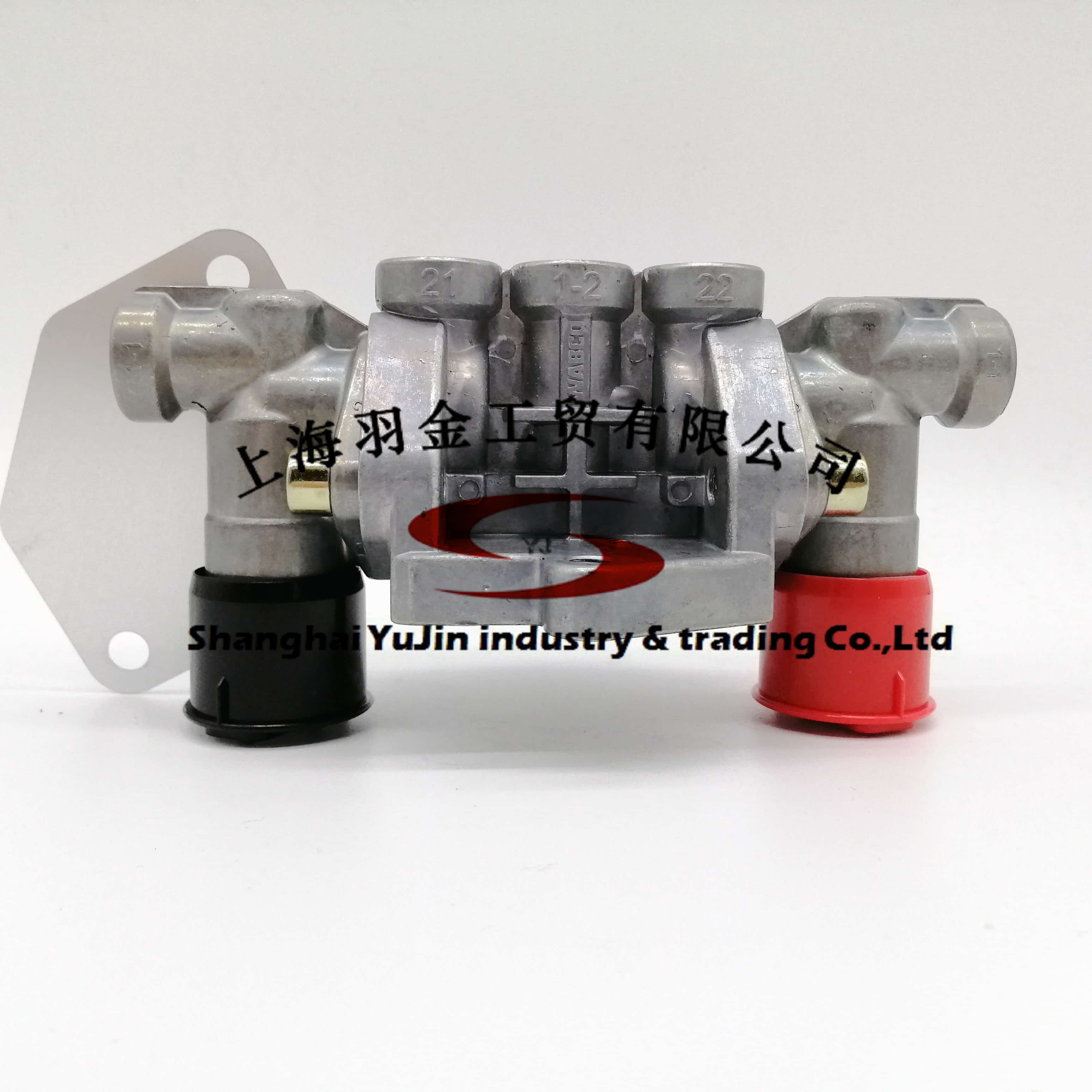

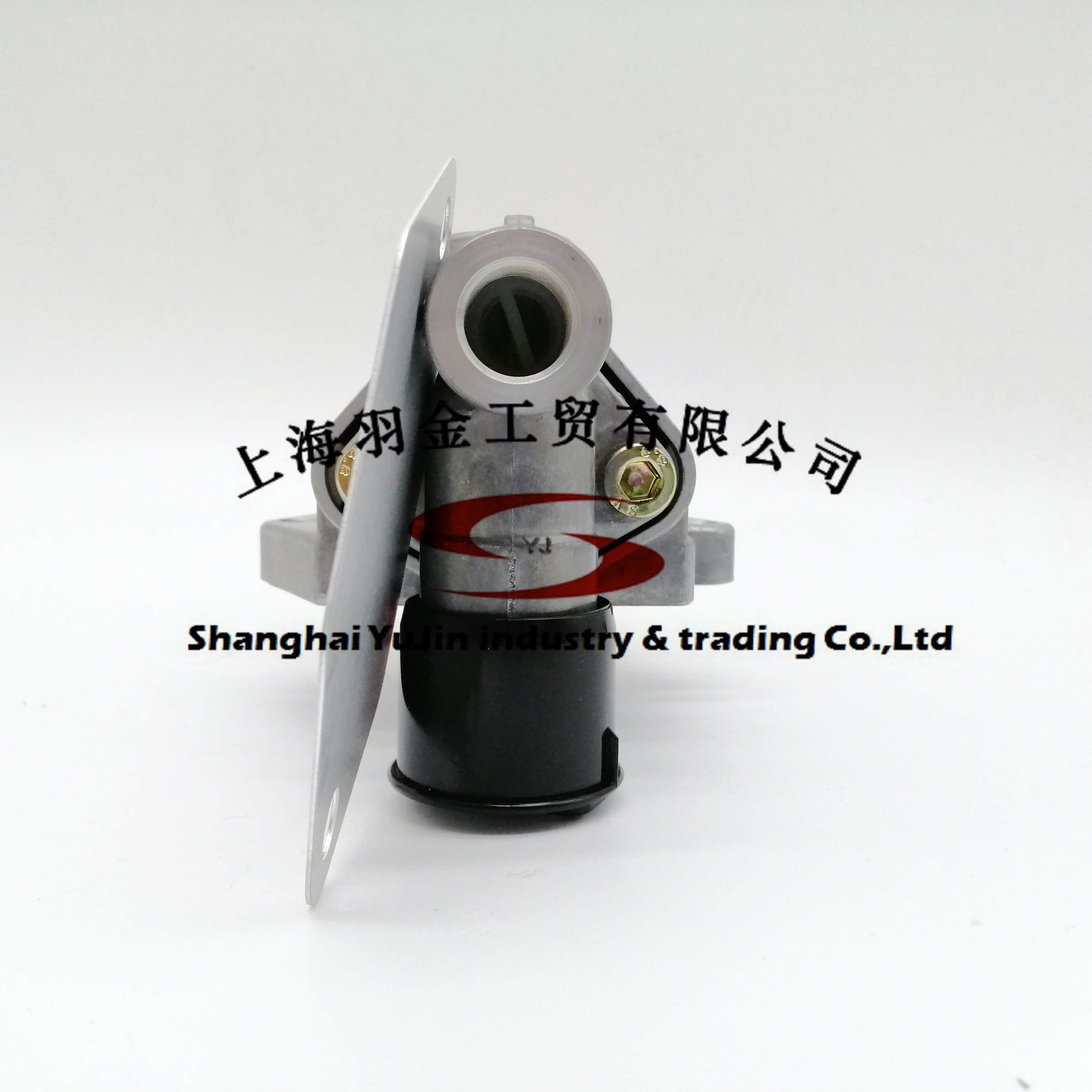

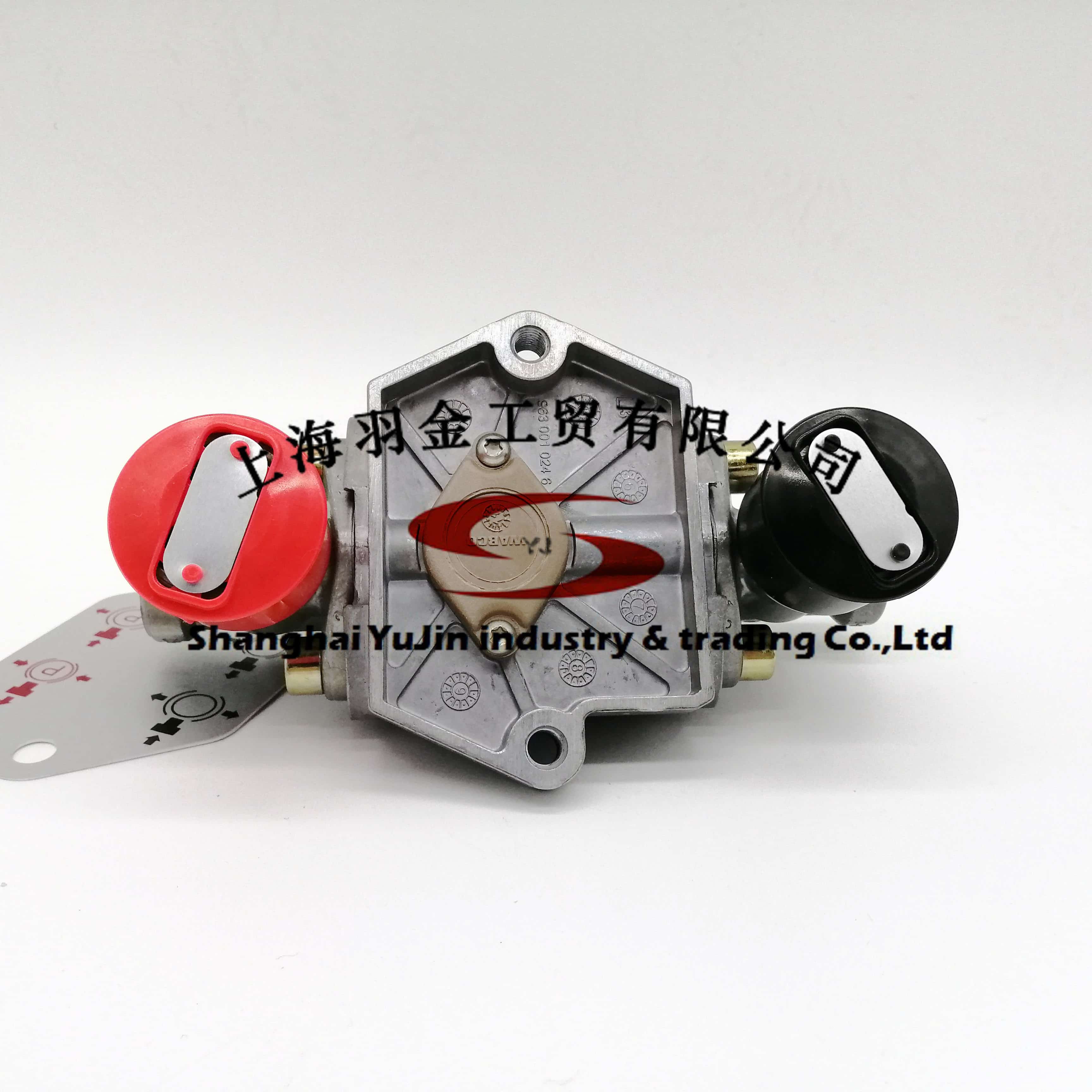

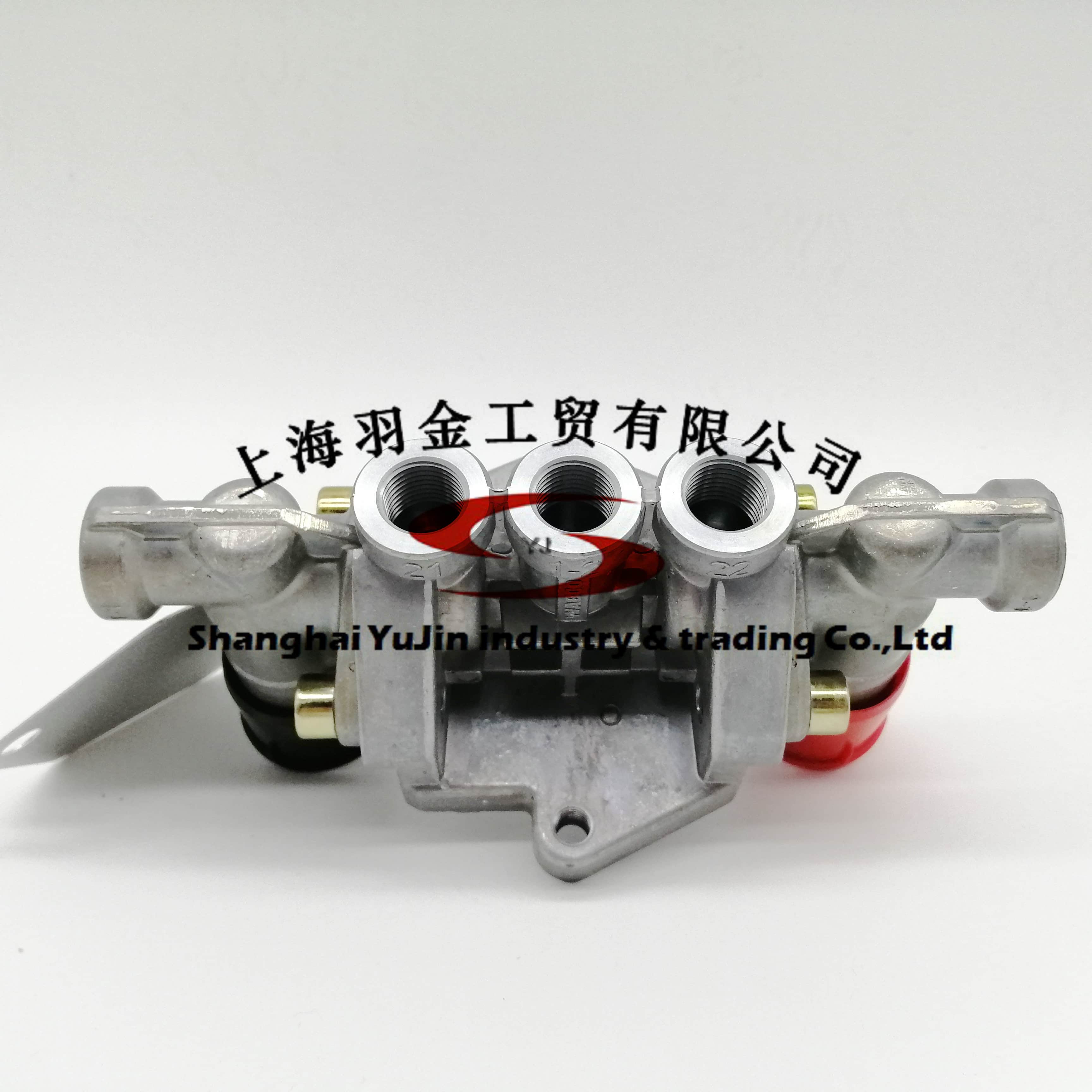

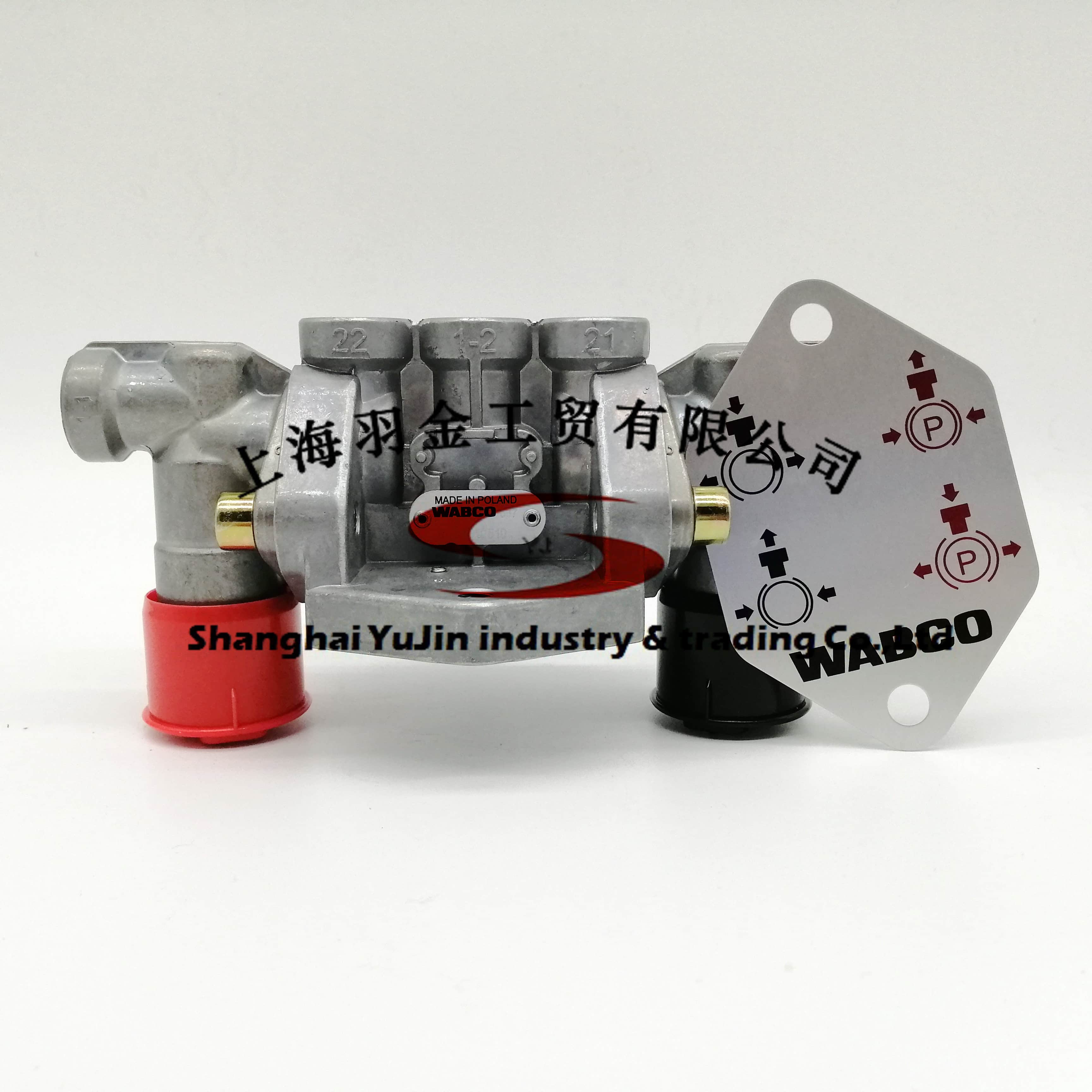

双释放阀 -- 9630010510
产品介绍
| DAF | 1506448 |
| DOLL | 7069646 |
| FAYMONVILLE | 7886 |
| FELDBINDER | 6916 |
| GOLDHOFER | 164265 |
| KEMPF | 2102006 |
| KENWORTH | S9630010510 |
| KRONE | 58124230 |
| KRONE | 5812423 |
| KÄSSBOHRER | 8283012000 |
| KÄSSBOHRER | 21151103260 |
| KÖGEL | 336490 |
| LANGENDORF | 1133254 |
| LECITRAILER | 4112002 |
| LIEBHERR | 10102276 |
| LOHR | A05021210 |
| LOHR | 9630010510 |
| MACK | 6300-9630010510 |
| MERITOR | S9630010510 |
| NEOPLAN | 07133000 |
| NOOTEBOOM | 1319581 |
| NOOTEBOOM | 10658 |
| ORTHAUS | 49500466000 |
| ORTHAUS | 495060 |
| OTOKAR | AIF0503 |
| PACCAR | 1506448 |
| PETERBILT | S9630010510 |
| SCANIA | 2090266 |
| SCHMITZ CARGOBULL | 052190 |
| SCHMITZ CARGOBULL | 8283012000 |
| SCHMITZ CARGOBULL | 1060742 |
| SCHWARZMÜLLER | 36006 |
| TIRSAN | 21151103260 |
| VOLVO | WAB9630010510 |
| ZORZI | 1013171 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Actuation | Black/Red |
| Application | 971 002 |
| Calculated Volume (dm³) | 1.7205 |
| Comments | With non-return valve |
| Distance between holes | 3.39 in |
| Max. operating pressure | 123.28 psi |
| Mounting | 2x Ø 8.5 mm - Flange |
| Port thread 1-1 | M16 x 1.5 |
| Port thread 1-2 | M16 x 1.5 |
| Port thread 2 | Ø 0.86 in |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 3 | Flap Exhaust |
| Port threads | M16 x 1.5 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Release valve |
| GTIN | 7895851086418 |
| Size (mm x mm x mm) | 178.5 x 94.5 x 102 |
| UPC | 193133449409 |
| Weight (kg) | 0.603 |
